Beckhoff AA3033-4xyz

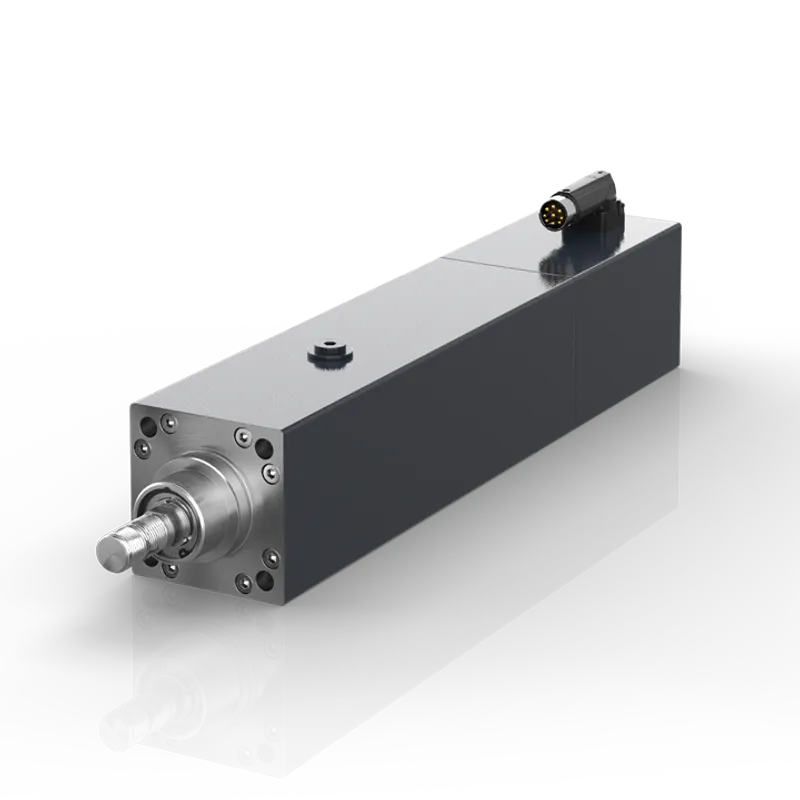

Electric cylinder 6250 N (Fmax), 1.0 m/s (vmax)

MPN: AA3033-4xyz
Category: AA3033

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff AA3033-4xyz?

The electric cylinders from the AA3000 series are the ideal direct drives for linear applications with high process forces and speeds. The advantages with regard to force, dynamics and compactness meet the advantages of servo technology such as

Specifications

Motor type	permanent magnet-excited three-phase synchronous motor with integrated spindle drive
Nominal voltage	100…480 V AC
Peak force	6250 N
Continuous force	1850 N
Peak current	15 A
Continuous current	4.7 A
Max. speed	1.0 m/s
Max. acceleration	20 m/s²
Max. stroke	200 mm
Spindle pitch	10 mm with anti-twist protection
Cooling	convection
Motor feedback	OCT, 24 bit, SIL 2-capable, multi-turn absolute encoder
Connection method	itec® plug
Ambient temperature (operation)	5…40°C
Approvals/markings	CE
Protection rating	IP50, IP54 with venting hose instead of venting plug
Design form	flange according to ISO 15552, flange-mounted according to IM B14, IM V18, IM V19
Material	aluminum
Coating/surface	acrylic powder-coated, dark gray, similar to RAL7016
a	45 f8
b	M16 x 1.5
d	32 mm
l	56.5 mm
r	75 mm
k	380 mm (Order option z (holding brake) has no influence on the overall length ot the motor)
