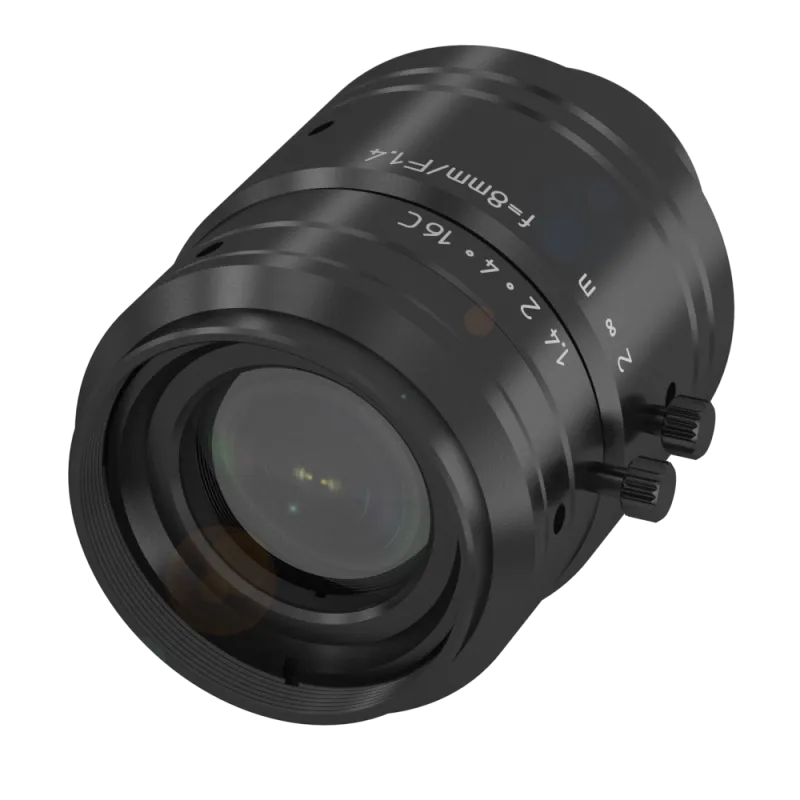

Balluff – FHW007E LM8JC1MS – C-mount lenses
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | C-mount lenses |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can FHW007E be shipped?
FHW007E is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FHW007E in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FHW007E and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FHW007E, subject to availability and destination.
Balluff FHW007E (LM8JC1MS) — C-mount lenses. Ambient temperature: -10...50 °C; Filter: no; Focal length: 8 mm; Back focal length: 17.526 mm; Aperture: 1.4...close. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Type designation | LM8JC1MS |
| Product group | C-mount lenses |
Key features
| Ambient temperature | -10...50 °C |
| Filter | no |
| Focal length | 8 mm |
| Back focal length | 17.526 mm |
| Aperture | 1.4...close |
| Distortion | -0.60 % |
| Minimum object distance (MOD) | 100 mm |
| Angle of view, horizontal | 56.5 ° |
| Angle of view, vertical | 43.9 ° |
| Max. Sensor size | 2/3" |
| Image resolution | 2 MP |
| Mounting part | Threads |
| Lens mount | C-Mount |
| Dimension | Ø 34 x 42.2 mm |
| Material | Aluminum, black anodized |
| Weight | 90 g |
| Additional text | The angle of view was determined at the maximum permissible sensor size (4:3). |
| Manufacturer | Kowa |
Classifications
| ECLASS 14.0 | 27-31-02-03 |
| ETIM 9.0 | EC003015 |
