Balluff – BOS016L BOS 23K-PU-LE10-S4 – Through-beam sensors
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Through-beam sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can BOS016L be shipped?
BOS016L is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BOS016L in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BOS016L and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BOS016L, subject to availability and destination.

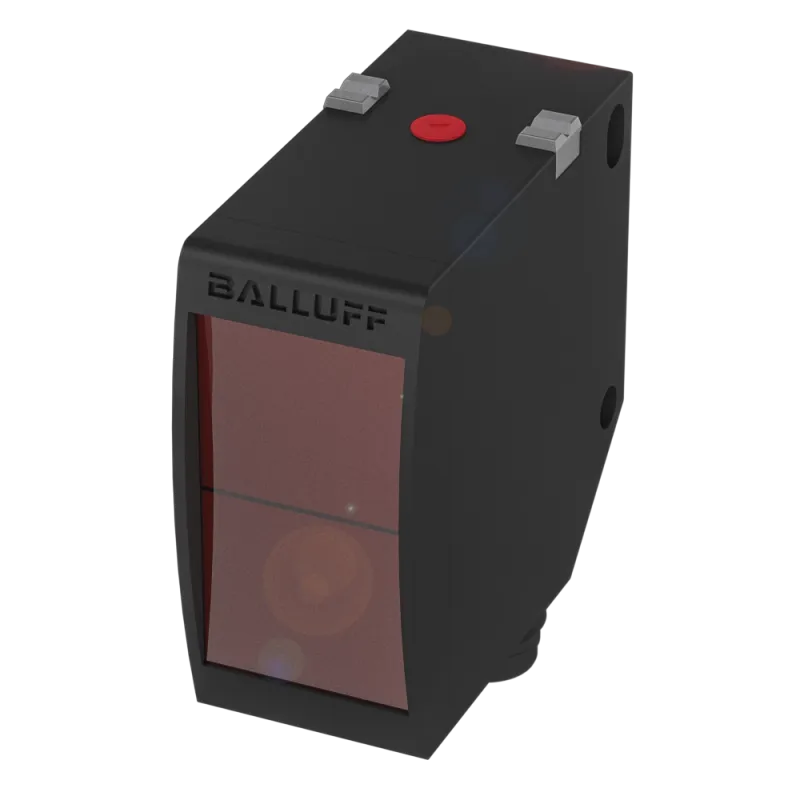

Balluff BOS016L (BOS 23K-PU-LE10-S4) — Through-beam sensor. Special characteristics: Washdown; Series: 23K; Dimension: 23 x 51 x 52.4 mm; Interface: PNP: NO/NC; Input function: Key disable on/off Same function as button. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Type designation | BOS 23K-PU-LE10-S4 |
| Product group | Through-beam sensors |
Key features
| Special characteristics | Washdown |
| Series | 23K |
| Dimension | 23 x 51 x 52.4 mm |
| Interface | PNP: NO/NC |
| Input function | Key disable on/off Same function as button |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Through-beam sensor (receiver) |
| Light type | Laser red light |
| Range | 0...30 m |
| Connection | Connector, M12x1-Male, 4-pin |
| Housing material | PC ABS |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | Ecolab CE cULus WEEE |
Classifications
| ECLASS 14.0 | 27-27-09-01 |
| ETIM 9.0 | EC002716 |
| UNSPSC 11 | 39121528 |
