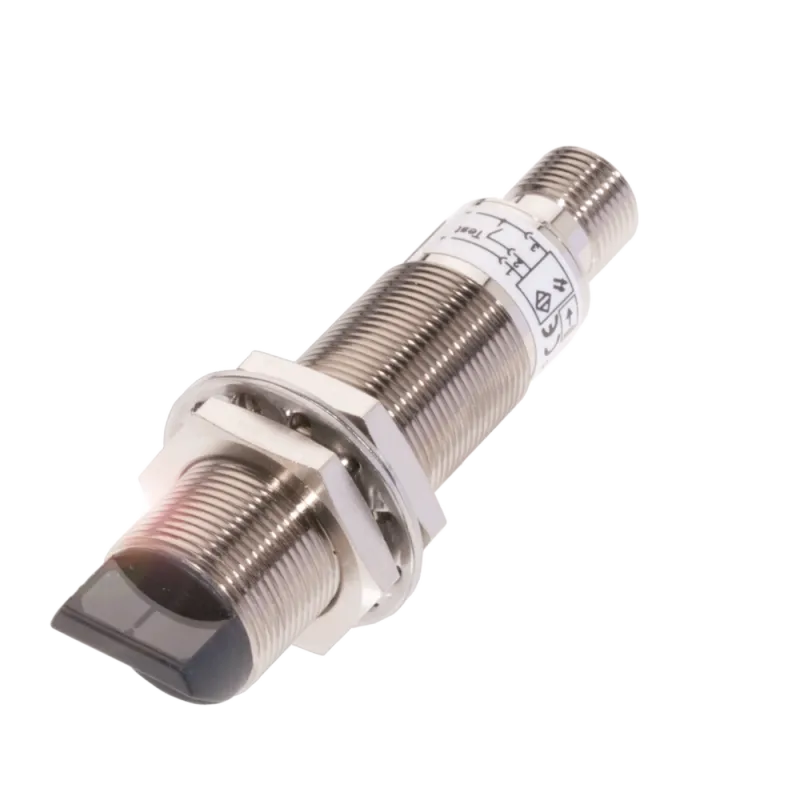

Balluff – BOS010F BLS 18MR-XX-1P-E5-L-S4 – Through-beam sensors
Discontinued by Balluff — we can still source the original BOS010F (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Through-beam sensors |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Recommended replacement | BOS026N |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the BOS010F now that it is discontinued?
Yes. Balluff has discontinued the BOS010F, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Balluff names the BOS026N as its successor — we can quote both.
When can BOS010F be shipped?
BOS010F is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BOS010F in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BOS010F and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BOS010F, subject to availability and destination.
Balluff BOS010F (BLS 18MR-XX-1P-E5-L-S4) — Through-beam sensor. Series: 18MR; Dimension: Ø 18 x 18 mm; Input function: Test (Emitter off); Principle of optical operation: Through-beam sensor (Emitter); Light type: LED, red light. Discontinued by Balluff; Balluff names BOS026N as alternative. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Discontinued by Balluff |
| Type designation | BLS 18MR-XX-1P-E5-L-S4 |
| Product group | Through-beam sensors |
| Balluff alternatives | BOS026N |
Key features
| Series | 18MR |
| Dimension | Ø 18 x 18 mm |
| Input function | Test (Emitter off) |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Through-beam sensor (Emitter) |
| Light type | LED, red light |
| Range | 0...20 m |
| Connection | Connector, M12x1-Male, 4-pin |
| Housing material | Brass, Chrome-plated |
| Material sensing surface | Glass |
| Operating voltage Ub | 10...36 VDC |
| Approval/Conformity | CE EAC WEEE |
Classifications
| ECLASS 14.0 | 27-27-09-01 |
| ETIM 9.0 | EC002716 |
| UNSPSC 11 | 39121528 |
