Balluff BOS00WL

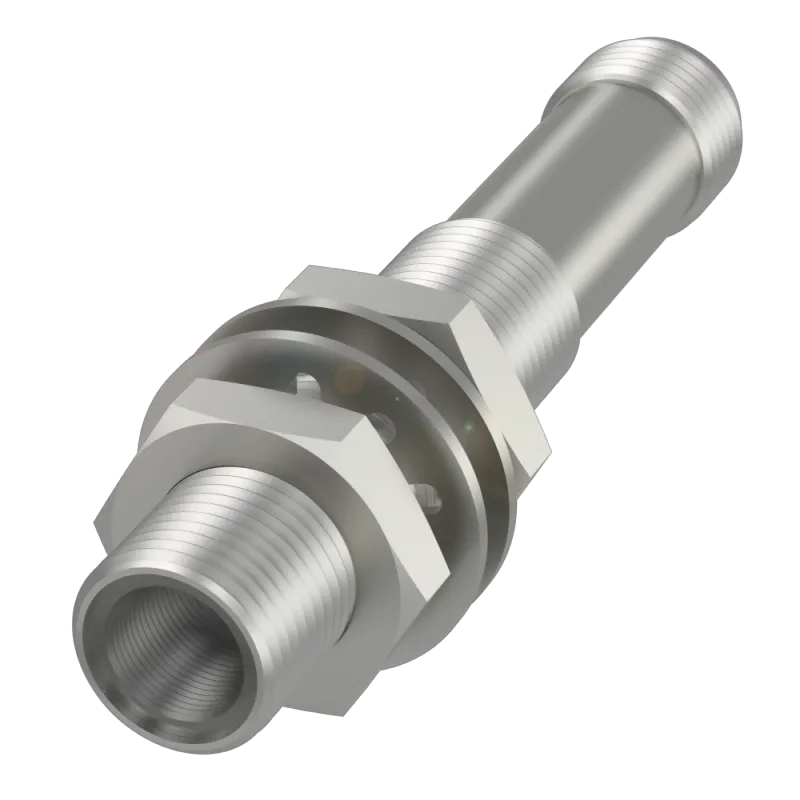

BOS 12M-XT-LS11-S4 – Through-beam sensors

MPN
BOS00WL
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Balluff parts? We buy surplus →

What is the Balluff BOS00WL?

Balluff BOS00WL (BOS 12M-XT-LS11-S4) — Through-beam sensor. Series: 12M; Dimension: Ø 12 x 70 mm; Input function: Test (Emitter off); Principle of optical operation: Through-beam sensor (Emitter); Beam characteristic: Focus, typical at 500 mm. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Type designationBOS 12M-XT-LS11-S4
Product groupThrough-beam sensors

Key features

Series12M
DimensionØ 12 x 70 mm
Input functionTest (Emitter off)
Principle of operationPhotoelectric sensor
Principle of optical operationThrough-beam sensor (Emitter)
Beam characteristicFocus, typical at 500 mm
Light typeLaser red light
Light spot sizeØ 2.5 mm Light exit
Range0...3 m
ConnectionConnector, M12x1-Male, 4-pin
Housing materialBrass, nickel-plated
Material sensing surfaceGlass
Operating voltage Ub10...30 VDC
Approval/ConformityCE UKCA cULus WEEE

Classifications

ECLASS 14.027-27-09-01
ETIM 9.0EC002716
UNSPSC 1139121528

BOS00WL: frequently asked questions

When can BOS00WL be shipped?

BOS00WL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BOS00WL in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BOS00WL and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BOS00WL, subject to availability and destination.
