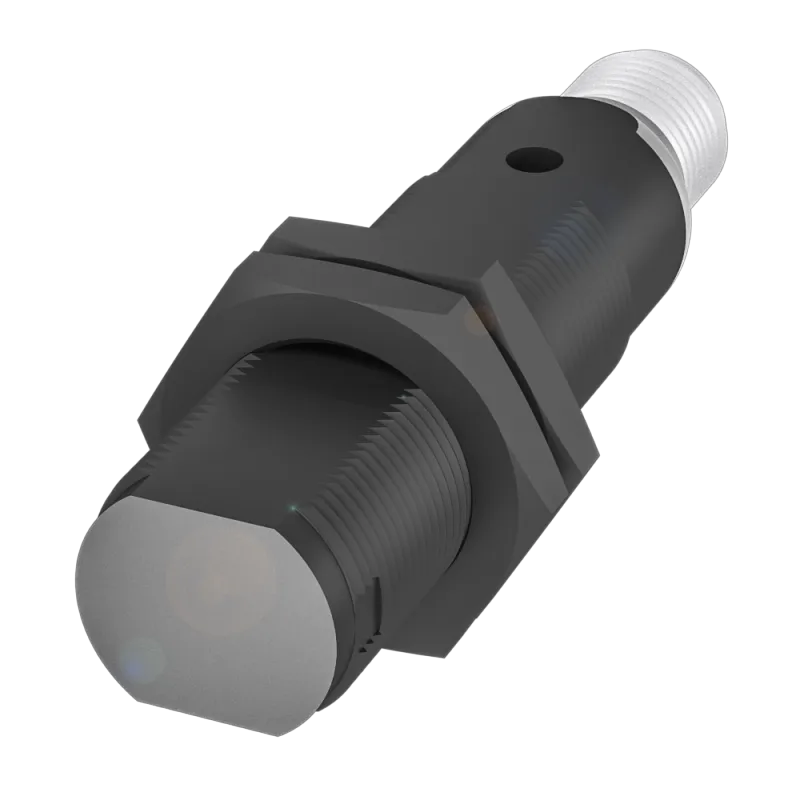

Balluff – BOS00EP BLS 18KF-XX-1P-S4-L – Through-beam sensors
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Through-beam sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can BOS00EP be shipped?
BOS00EP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BOS00EP in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BOS00EP and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BOS00EP, subject to availability and destination.
Balluff BOS00EP (BLS 18KF-XX-1P-S4-L) — Through-beam sensor. Series: 18KF; Dimension: Ø 18 x 71.5 mm; Input function: Test (Emitter off); Principle of optical operation: Through-beam sensor (Emitter); Light type: Infrared. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Type designation | BLS 18KF-XX-1P-S4-L |
| Product group | Through-beam sensors |
Key features
| Series | 18KF |
| Dimension | Ø 18 x 71.5 mm |
| Input function | Test (Emitter off) |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Through-beam sensor (Emitter) |
| Light type | Infrared |
| Range | 0...20 m |
| Connection | Connector, M12x1-Male, 4-pin |
| Housing material | PBT |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | CE UKCA cULus WEEE |
Classifications
| ECLASS 14.0 | 27-27-09-01 |
| ETIM 9.0 | EC002716 |
| UNSPSC 11 | 39121528 |
More Balluff parts
Available on requestBOS00CN BLE 18KW-NA-1PP-C-02 – Through-beam sensors
Available on requestBOS00EK BLS 18K-XX-1LT-E5-C-S4 – Through-beam sensors
Available on requestBOS00EL BLS 18KF-XX-1LT-L-02 – Through-beam sensors
Available on requestBOS00EN BLS 18KF-XX-1P-L-02 – Through-beam sensors
Available on requestBOS00EU BLS 18KW-XX-1P-L-02 – Through-beam sensors
Available on requestBOS00EW BLS 18KW-XX-1P-S4-L – Through-beam sensors
Available on requestBOS00F7 BOS 15K-R-A0.6-SA1 – Retroreflective sensors

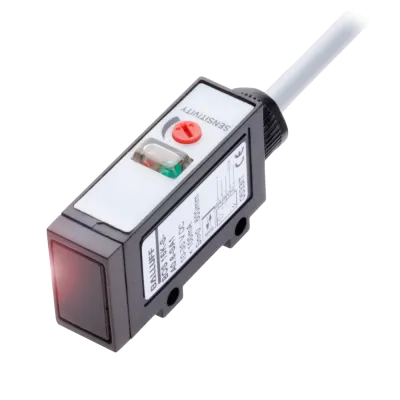

Available on requestBOS00FL BOS 15K-S-A0.6-SA1 – Retroreflective sensors
