Balluff BNS03Z8

BNS 813-B03-D12-61-A-55-1197 – Mechanical multiple position limit switches with safety switch positions

MPN
BNS03Z8
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Balluff parts? We buy surplus →

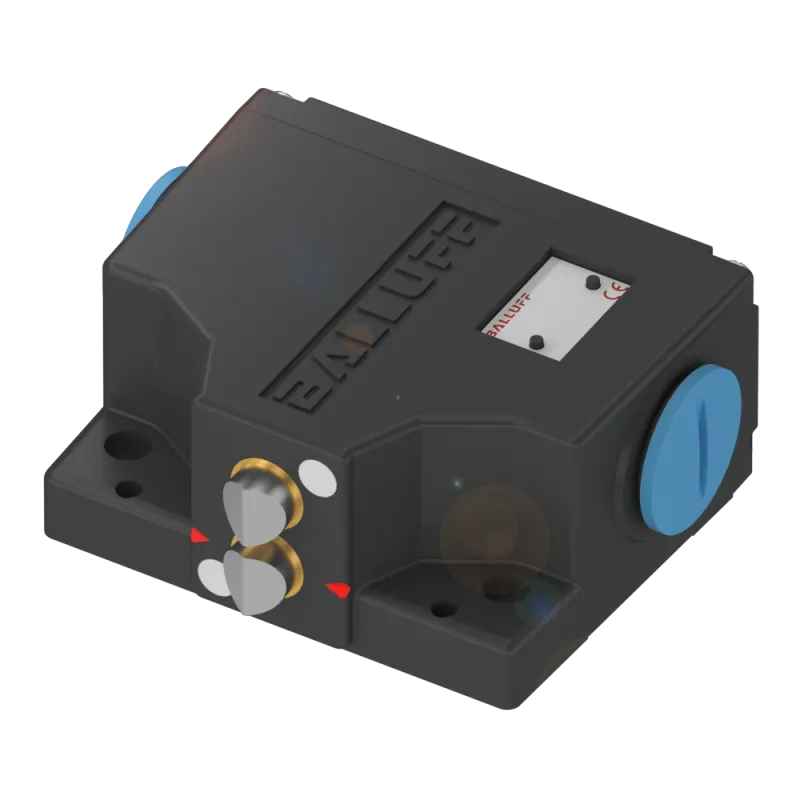

What is the Balluff BNS03Z8?

Balluff BNS03Z8 (BNS 813-B03-D12-61-A-55-1197) — Mechanical multiple position limit switches with safety switch positions. Dimension: 79 x 48 x 63 mm; Housing material: Aluminium, Anodized; Number of switching positions: 3x Chisel; Version: Safety EN 60204-1; Operating principle: 1. Switch position: Mechanical 2. Switch position: Inductive 3. Switch position: Mechanical. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Type designationBNS 813-B03-D12-61-A-55-1197
Product groupMechanical multiple position limit switches with safety switch positions

Key features

Dimension79 x 48 x 63 mm
Housing materialAluminium, Anodized
Number of switching positions3x Chisel
VersionSafety EN 60204-1
Operating principle1. Switch position: Mechanical 2. Switch position: Inductive 3. Switch position: Mechanical
Continuous current1. Switch position: 6 A 2. Switch position: 0.1 A 3. Switch position: 6 A
Rated operating voltage Ue1. Switch position: 250 V AC 2. Switch position: 24 V DC 3. Switch position: 250 V AC
InstallationVertical
Approach directionlongitudinal, parallel to attachment surface
Approach speed1. Switch position: 40 m/min 3. Switch position: 40 m/min
Switch position spacing12 mm
Connection type1-3. Switch position: Screw terminal
Ambient temperature-5...85 °C
IP ratingIP67
Approval/ConformityCE CCC WEEE

Classifications

ECLASS 14.027-27-06-02
ETIM 9.0EC001829
UNSPSC 1141111900

BNS03Z8: frequently asked questions

When can BNS03Z8 be shipped?

BNS03Z8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BNS03Z8 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BNS03Z8 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BNS03Z8, subject to availability and destination.
