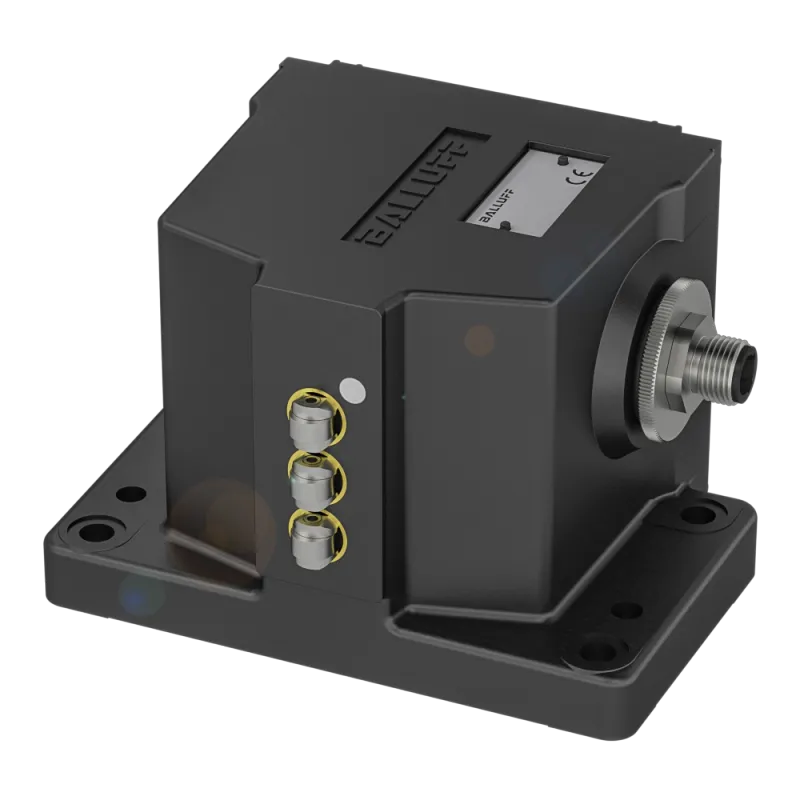

Balluff – BNS00A8 BNS 819-D02-D12-100-10-S80R – Mechanical multiple position limit switches
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mechanical multiple position limit switches |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can BNS00A8 be shipped?
BNS00A8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BNS00A8 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BNS00A8 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BNS00A8, subject to availability and destination.
Balluff BNS00A8 (BNS 819-D02-D12-100-10-S80R) — Mechanical multiple position limit switches. Dimension: 120 x 70 x 83 mm; Housing material: Aluminum, Anodized; Number of switching positions: 2x Chisel; Version: Snap contact; Operating principle: 1-2. Switch position: Mechanical. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Type designation | BNS 819-D02-D12-100-10-S80R |
| Product group | Mechanical multiple position limit switches |
Key features
| Dimension | 120 x 70 x 83 mm |
| Housing material | Aluminum, Anodized |
| Number of switching positions | 2x Chisel |
| Version | Snap contact |
| Operating principle | 1-2. Switch position: Mechanical |
| Continuous current | 1-2. Switch position: 4 A |
| Rated operating voltage Ue | 1-2. Switch position: 250 V AC |
| Installation | Vertical |
| Approach direction | longitudinal, parallel to attachment surface |
| Approach speed | 1-2. Switch position: 40 m/min |
| Switch position spacing | 12 mm |
| Connection type | 1. Switch position: Connector |
| Ambient temperature | -5...85 °C |
| IP rating | IP67 |
| Approval/Conformity | CE UKCA CCC WEEE |
Classifications
| ECLASS 14.0 | 27-27-06-02 |
| ETIM 9.0 | EC001829 |
| UNSPSC 11 | 41111900 |
