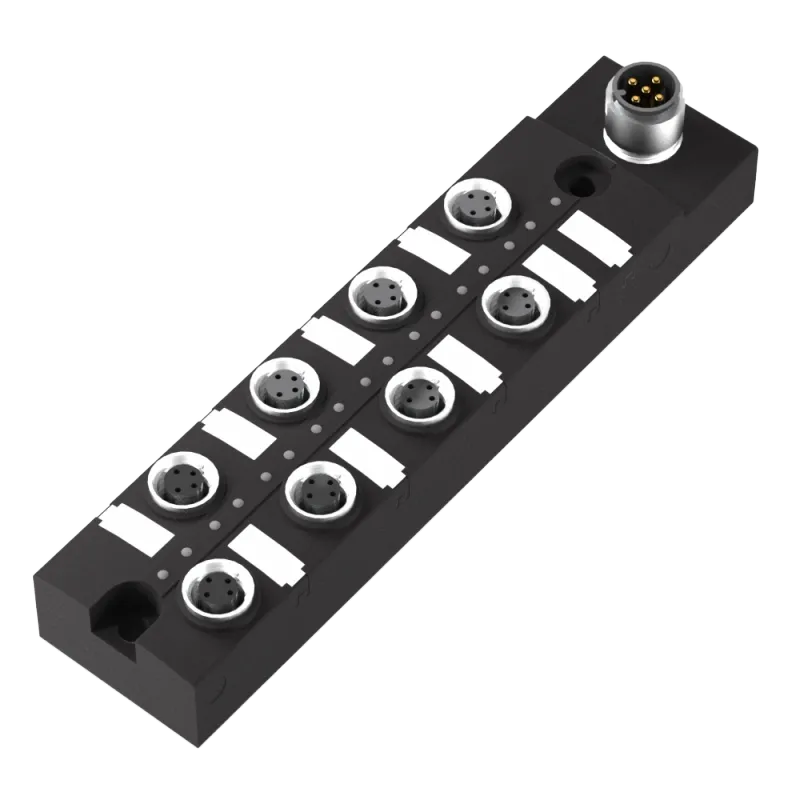

Balluff BNI0022
BNI IOL-104-S01-K021 – IO-Link hubs - flexible and cost-efficient signal bundling
- MPN
- BNI0022
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Balluff BNI0022?
Balluff BNI0022 (BNI IOL-104-S01-K021) — IO-Link hubs - flexible and cost-efficient signal bundling. Interface: IO-Link 1.0; Operating voltage Ub: 18...30.2 VDC; Connection (COM 1): M12x1-Male, 4-pin, A-coded; Connection slots: 8x M8x1-Female, 4-pin; Digital inputs: 16x PNP, Type 2. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Type designation | BNI IOL-104-S01-K021 |
| Product group | IO-Link hubs - flexible and cost-efficient signal bundling |
Key features
| Interface | IO-Link 1.0 |
| Operating voltage Ub | 18...30.2 VDC |
| Connection (COM 1) | M12x1-Male, 4-pin, A-coded |
| Connection slots | 8x M8x1-Female, 4-pin |
| Digital inputs | 16x PNP, Type 2 |
| Configurable inputs/outputs | no |
| Single-channel monitoring | yes |
| Current sum US, sensor | 4 A |
| Housing material | PBT, GF |
| Dimension | 30 x 24 x 129.5 mm |
| Ambient temperature | -5...55 °C |
| IP rating | IP67, when threaded in |
| Transfer rate | COM2 (38.4 kBaud) |
| Process data cycle min. | 10 ms |
| Process data IN | 4 bytes |
Classifications
| ECLASS 14.0 | 27-24-26-02 |
| ETIM 9.0 | EC001599 |
| UNSPSC 11 | 39121306 |
