Balluff – BML002W BML-S2B0-Q53G-M410-P0-KA10 – Incremental linear distance measuring system and rotary angle measuring system
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Incremental linear distance measuring system and rotary angle measuring system |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can BML002W be shipped?
BML002W is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BML002W in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BML002W and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BML002W, subject to availability and destination.
Balluff BML002W (BML-S2B0-Q53G-M410-P0-KA10) — Incremental linear distance measuring system and rotary angle measuring system. Dimension: 10 x 25 x 35 mm; Connection: Cable, 10 m, PUR; Housing material: PBT; Interface: Digital A/B (HTL); Resolution: 10 µm. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Type designation | BML-S2B0-Q53G-M410-P0-KA10 |
| Product group | Incremental linear distance measuring system and rotary angle measuring system |
Key features
| Dimension | 10 x 25 x 35 mm |
| Connection | Cable, 10 m, PUR |
| Housing material | PBT |
| Interface | Digital A/B (HTL) |
| Resolution | 10 µm |
| Read distance | 0.01...2 mm |
| Non-linearity max. | ±50 µm (distance ≤ 1.0 mm) |
| Reference signal | Individually or fixed-periodic |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -20...80 °C |
| IP rating | IP67 |
| Procedure direction | Lengthwise to tape |
| Approval/Conformity | cURus CE |
Classifications
| ECLASS 14.0 | 27-27-43-04 |
| ETIM 9.0 | EC001852 |
| UNSPSC 11 | 41111945 |
More Balluff parts
Available on requestBML002N BML-M20-I40-A0-M072/054-R0 – Axial Magnetic Rings for Absolute Angle Measurement
Available on requestBML002R BML-M21-I40-A0-M048/006-R0 – Axial Magnetic Rings for Absolute Angle Measurement

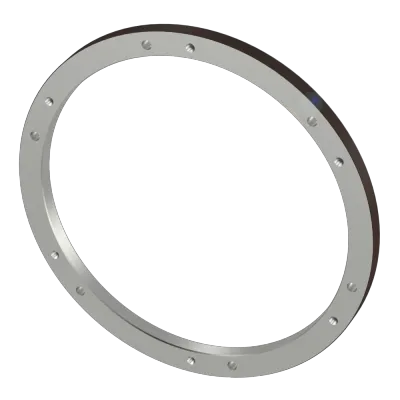

Available on requestBML002T BML-M22-I40-A0-M031/016-R0 – Axial Magnetic Rings for Absolute Angle Measurement
