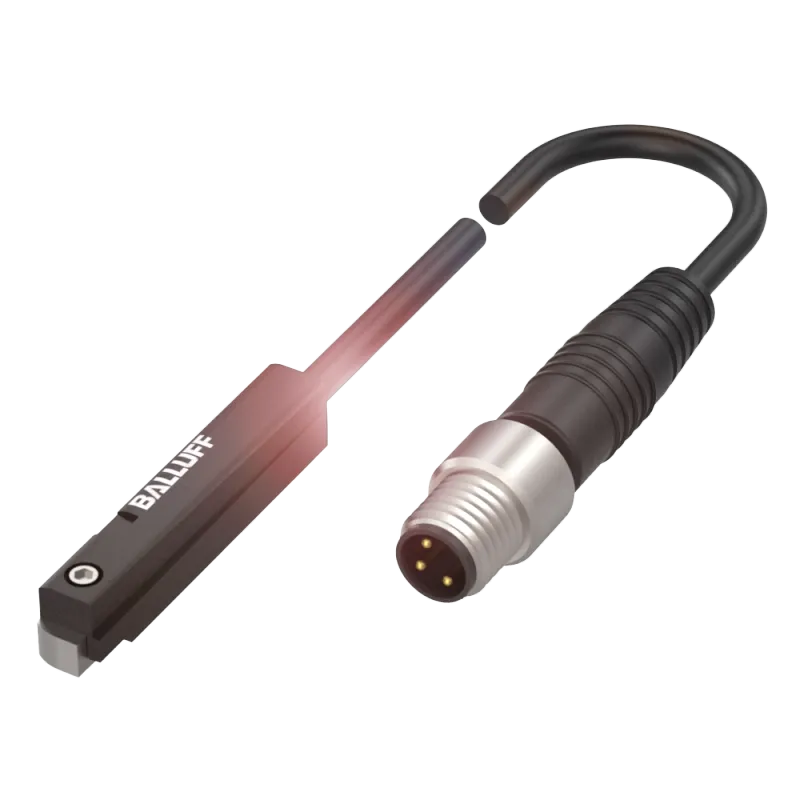

Balluff – BMF007A BMF 315K-NO-C-2-SA2-S49-00,2 – Cylinder sensors for multiple slot shapes
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cylinder sensors for multiple slot shapes |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can BMF007A be shipped?
BMF007A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMF007A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMF007A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMF007A, subject to availability and destination.
Balluff BMF007A (BMF 315K-NO-C-2-SA2-S49-00,2) — Cylinder sensors for multiple slot shapes. Slot type: T-slot; Dimension: 31 x 5.1 x 6.2 mm; Connection: M8x1-Male, 3-pin; Cable: PUR, 0.2 m; Application: Pneumatic cylinder with T-slot. For dimensions, see sketch in product view.. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Type designation | BMF 315K-NO-C-2-SA2-S49-00,2 |
| Product group | Cylinder sensors for multiple slot shapes |
Key features
| Slot type | T-slot |
| Dimension | 31 x 5.1 x 6.2 mm |
| Principle of operation | Magnetic field sensor |
| Connection | M8x1-Male, 3-pin |
| Cable | PUR, 0.2 m |
| Application | Pneumatic cylinder with T-slot. For dimensions, see sketch in product view. |
| Housing material | PA 6.6 |
| Switching output | NPN normally closed (NC) |
| Switching frequency | 10000 Hz |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...85 °C |
| IP rating | IP67 |
| Approval/Conformity | CE cULus |
Classifications
| ECLASS 14.0 | 27-27-43-01 |
| ETIM 9.0 | EC002544 |
| UNSPSC 11 | 41111916 |
