Balluff – BKT0004 BKT 67M-004-U-S92 – Contrast sensors
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Contrast sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can BKT0004 be shipped?
BKT0004 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BKT0004 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BKT0004 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BKT0004, subject to availability and destination.
Balluff BKT0004 (BKT 67M-004-U-S92) — Contrast sensor. Series: 67M; Dimension: 32 x 64 x 82 mm; Interface: Analog, voltage: 1…5.5 V PNP/NPN: NO/NC; Input function: Same function as SET button; Principle of optical operation: Diffuse sensor, focused. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Type designation | BKT 67M-004-U-S92 |
| Product group | Contrast sensors |
Key features
| Series | 67M |
| Dimension | 32 x 64 x 82 mm |
| Interface | Analog, voltage: 1…5.5 V PNP/NPN: NO/NC |
| Input function | Same function as SET button |
| Principle of operation | Contrast sensor |
| Principle of optical operation | Diffuse sensor, focused |
| Beam characteristic | Focused |
| Light type | blue light/green light/red light |
| Light spot size | 5 x 1.5 mm at 9 mm |
| Range | 6...12 mm |
| Connection | Connector, M12x1-Male |
| Housing material | Aluminum, Die casting, Painted |
| Material sensing surface | Glass |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | CE UKCA cULus WEEE |
Classifications
| ECLASS 14.0 | 27-27-09-06 |
| ETIM 9.0 | EC001820 |
| UNSPSC 11 | 39121528 |
More Balluff parts
Available on requestBIW0031 BIW1-A310-M0725-P1-S115 – Inductive transducer system
Available on requestBKT0001 BKT 67M-001-U-S92 – Contrast sensors
Available on requestBKT0002 BKT 67M-002-U-S92 – Contrast sensors
Available on requestBKT0003 BKT 67M-003-U-S92 – Contrast sensors
Available on requestBKT0005 BKT 67M-005-U-S92 – Contrast sensors
Available on requestBKT0006 BKT 67M-006-U-S92 – Contrast sensors

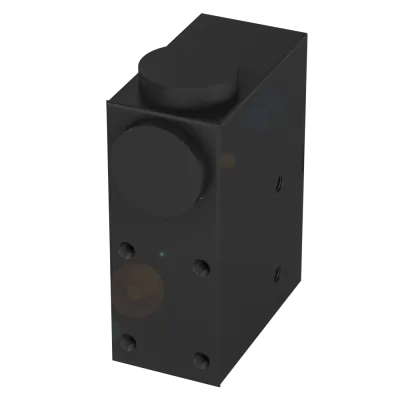

Available on requestBKT000N BKT M-15C-U-S4 – Contrast sensors
