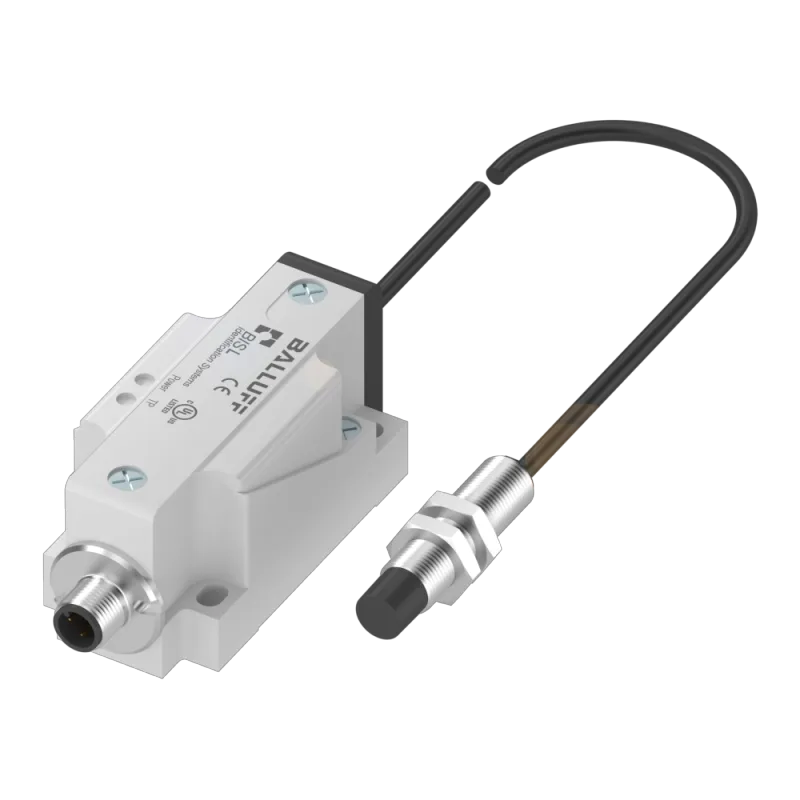

Balluff – BIS00CK BIS L-400-043-003-02-S115 – LF read/write heads (125 kHz) with integrated processor unit
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | LF read/write heads (125 kHz) with integrated processor unit |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can BIS00CK be shipped?
BIS00CK is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BIS00CK in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BIS00CK and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BIS00CK, subject to availability and destination.
Balluff BIS00CK (BIS L-400-043-003-02-S115) — LF read/write heads (125 kHz) with integrated processor unit. Product group: LF (125 kHz); Dimension: Ø 12 x 53 mm; Installation: metal-free (clear zone); Antenna type: round; Connection: Connector, M12x1-Male, 8-pin, 0.50 m, PU. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Type designation | BIS L-400-043-003-02-S115 |
| Product group | LF read/write heads (125 kHz) with integrated processor unit |
Key features
| Product group | LF (125 kHz) |
| Principle of operation | Read head |
| Dimension | Ø 12 x 53 mm |
| Installation | metal-free (clear zone) |
| Antenna type | round |
| Connection | Connector, M12x1-Male, 8-pin, 0.50 m, PU |
| Housing material | Brass, Interface PBT, nickel-plated |
| Interface | RS422 (Easy Loop) |
| Operating voltage Ub | 19.2...26.4 VDC |
| Ambient temperature | 0...70 °C |
| IP rating | IP67 |
| Approval/Conformity | CE UKCA cULus WEEE |
Classifications
| ECLASS 14.0 | 27-28-04-01 |
| ETIM 9.0 | EC002998 |
| UNSPSC 11 | 43211710 |
