Balluff – BIS0042 BIS M-105-02/A – HF RFID tags (13.56 MHz)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | HF RFID tags (13.56 MHz) |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can BIS0042 be shipped?
BIS0042 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BIS0042 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BIS0042 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BIS0042, subject to availability and destination.

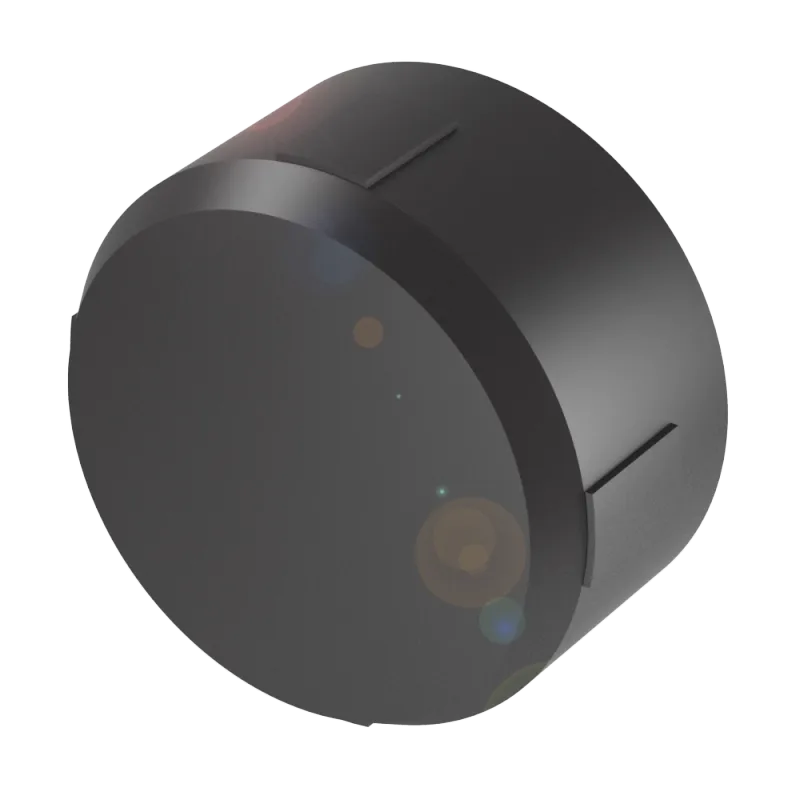

Balluff BIS0042 (BIS M-105-02/A) — HF RFID tags (13.56 MHz). Product group: HF (13.56 MHz); Dimension: Ø 11.98 x 6 mm; Antenna type: round; UID serial number, read-only: 8 Byte; Memory type: FRAM. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Type designation | BIS M-105-02/A |
| Product group | HF RFID tags (13.56 MHz) |
Key features
| Product group | HF (13.56 MHz) |
| Dimension | Ø 11.98 x 6 mm |
| Antenna type | round |
| UID serial number, read-only | 8 Byte |
| Memory type | FRAM |
| Supported data carrier types | DIN ISO 15693 |
| User data, read/write | 2000 Byte |
| Storage temperature | -25...85 °C |
| Ambient temperature | -25...70 °C |
| Housing material | Epoxy-resin/fiberglass, GF |
| IP rating | IP67 |
| Installation | metal-free (clear zone) on metal flush in metal |
| Approval/Conformity | CE UKCA WEEE |
Classifications
| ECLASS 14.0 | 27-28-04-02 |
| ETIM 9.0 | EC002996 |
| UNSPSC 11 | 43211710 |
