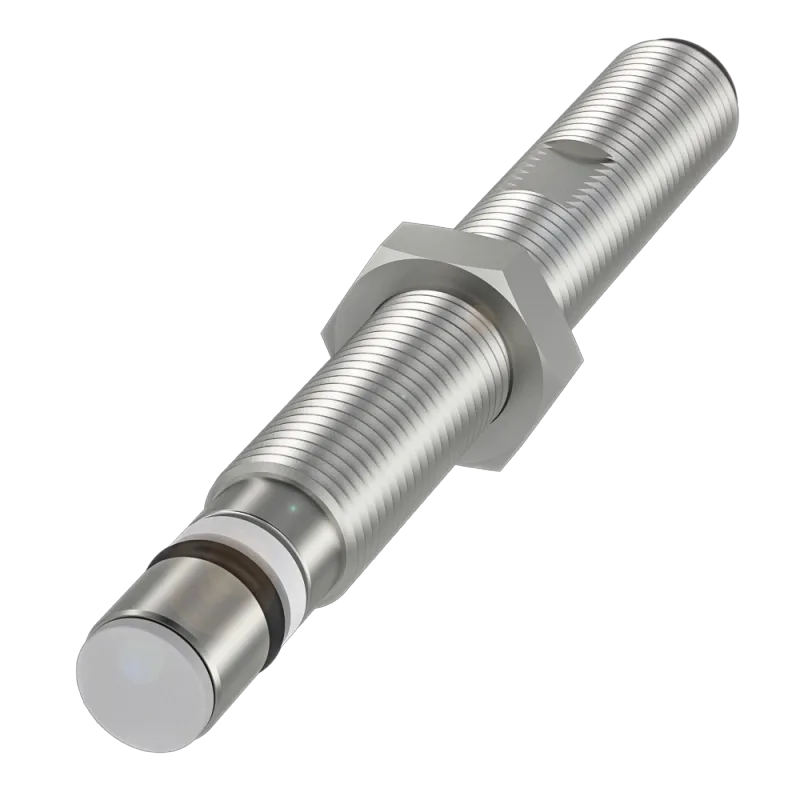

Balluff – BHS006R BHS G403N-NSD10-S26 – Pressure-rated inductive sensors

MPN: BHS006R · Brand: Balluff

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Pressure-rated inductive sensors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can BHS006R be shipped?

BHS006R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BHS006R in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BHS006R and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BHS006R, subject to availability and destination.

Balluff BHS006R (BHS G403N-NSD10-S26) — Pressure-rated inductive sensor. Dimension: Ø 4.2 x 40.5 mm; Style Housing: D4.2; Installation: for flush mounting; Range: 1 mm; Switching output: NPN normally open (NO). PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Active
Type designation	BHS G403N-NSD10-S26
Product group	Pressure-rated inductive sensors

Key features

Dimension	Ø 4.2 x 40.5 mm
Style Housing	D4.2
Installation	for flush mounting
Range	1 mm
Switching output	NPN normally open (NO)
Switching frequency	3000 Hz
Housing material	1.4104 stainless steel
Material sensing surface	Ceramic
Connection	Connector, M5x0.5-Male
Operating voltage Ub	10...30 VDC
Ambient temperature	-25...80 °C
Pressure rating max.	500 bar
IP rating	IP68
Approval/Conformity	CE cULus EAC WEEE
