Balluff BGL0038

BGL 50C-002-S4 – Fork sensors and angle sensors

MPN
BGL0038
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Balluff parts? We buy surplus →

What is the Balluff BGL0038?

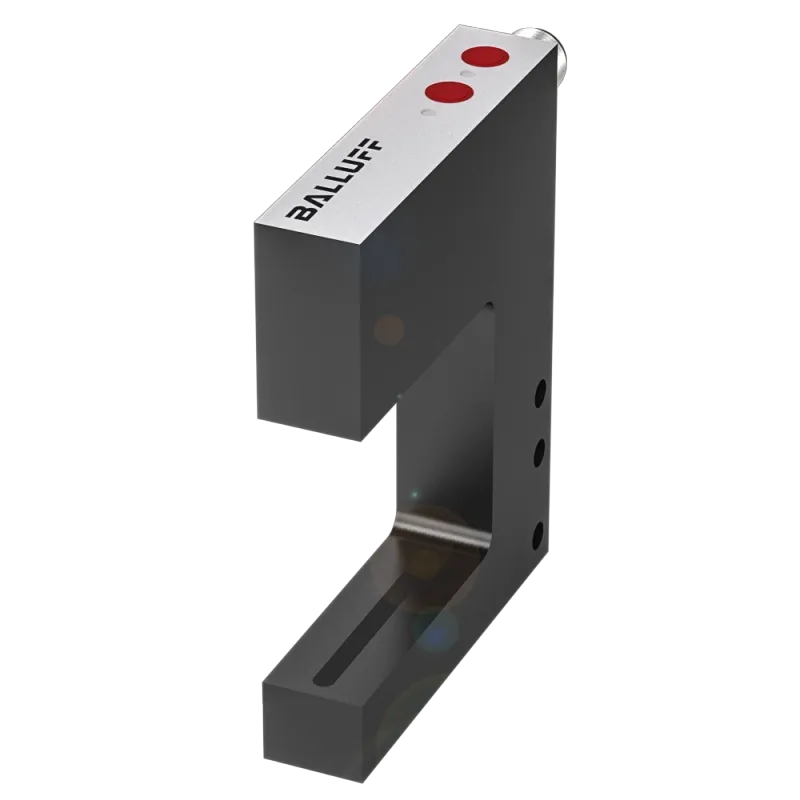

Balluff BGL0038 (BGL 50C-002-S4) — Fork sensors and angle sensor. Series: C; Dimension: 18 x 100 x 93.5 mm; Fork opening: 50 mm; Interface: 2x NPN normally open/normally closed (NO/NC); Principle of optical operation: Through-beam sensor. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Type designationBGL 50C-002-S4
Product groupFork sensors and angle sensors

Key features

SeriesC
Dimension18 x 100 x 93.5 mm
Fork opening50 mm
Interface2x NPN normally open/normally closed (NO/NC)
Principle of operationFork sensor
Principle of optical operationThrough-beam sensor
Special optical featureLight array
Beam characteristicDivergent
Light typeLED, red light
Light spot size3 x 28 mm Light exit
ConnectionConnector, M12x1-Male, 4-pin
Housing materialAluminium, Anodized
Material sensing surfacePMMA
Operating voltage Ub18...30 VDC
Approval/ConformityCE WEEE EAC

Classifications

ECLASS 14.027-27-09-09
ETIM 9.0EC002720
UNSPSC 1139121528

BGL0038: frequently asked questions

When can BGL0038 be shipped?

BGL0038 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BGL0038 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BGL0038 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BGL0038, subject to availability and destination.
