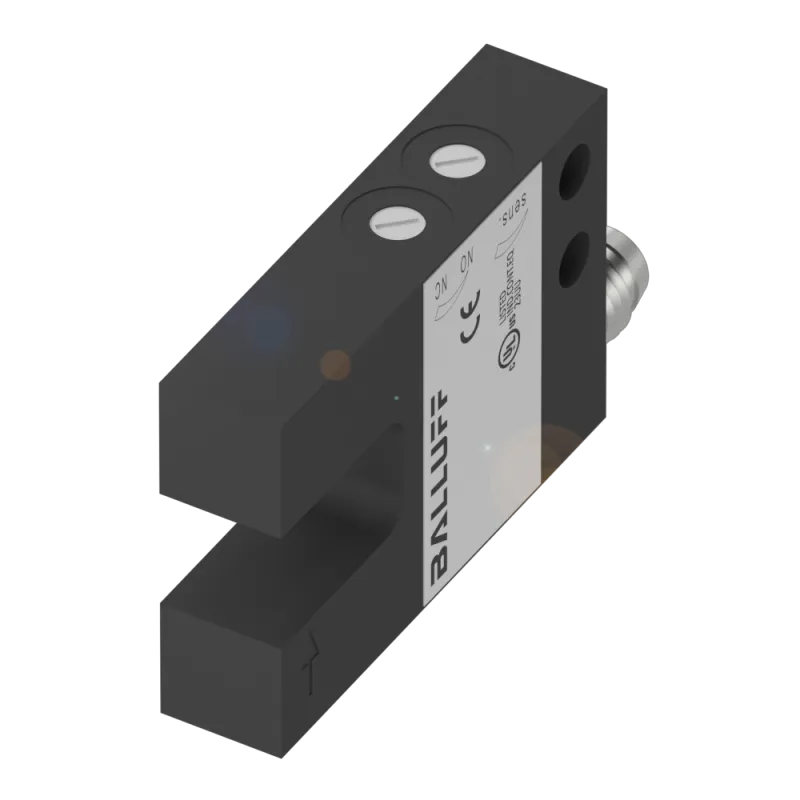

Balluff – BGL0006 BGL 10A-008-S49 – Fork sensors and angle sensors

MPN: BGL0006 · Brand: Balluff

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Fork sensors and angle sensors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can BGL0006 be shipped?

BGL0006 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BGL0006 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BGL0006 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BGL0006, subject to availability and destination.

Balluff BGL0006 (BGL 10A-008-S49) — Fork sensors and angle sensor. Series: A; Dimension: 10 x 30 x 54 mm; Fork opening: 10 mm; Interface: NPN normally open/normally closed (NO/NC); Principle of optical operation: Through-beam sensor. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Active
Type designation	BGL 10A-008-S49
Product group	Fork sensors and angle sensors

Key features

Series	A
Dimension	10 x 30 x 54 mm
Fork opening	10 mm
Interface	NPN normally open/normally closed (NO/NC)
Principle of operation	Fork sensor
Principle of optical operation	Through-beam sensor
Beam characteristic	Divergent
Light type	Infrared
Light spot size	Ø 2.0 mm Light exit
Connection	Connector, M8x1-Male, 3-pin
Housing material	Zinc, Die casting, Painted
Material sensing surface	Glass
Operating voltage Ub	10...30 VDC
Approval/Conformity	CE cULus EAC WEEE
