Balluff – BES03PA BES 516-324-EO-C-S49-00,8 – Inductive proximity switches and proximity sensors
Discontinued by Balluff — we can still source the original BES03PA (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive proximity switches and proximity sensors |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Recommended replacement | BES02PP, BES01AL |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the BES03PA now that it is discontinued?
Yes. Balluff has discontinued the BES03PA, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Balluff names the BES02PP as its successor — we can quote both.
When can BES03PA be shipped?
BES03PA is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BES03PA in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BES03PA and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BES03PA, subject to availability and destination.
Balluff BES03PA (BES 516-324-EO-C-S49-00,8) — Inductive proximity switches and proximity sensor. Dimension: Ø 8 x 45 mm; Style Housing: M8x1; Installation: for flush mounting; Range: 1.5 mm; Switching output: PNP normally open (NO). Discontinued by Balluff; Balluff names BES02PP, BES01AL as alternative. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Discontinued by Balluff |
| Type designation | BES 516-324-EO-C-S49-00,8 |
| Product group | Inductive proximity switches and proximity sensors |
| Balluff alternatives | BES02PP, BES01AL |
Key features
| Dimension | Ø 8 x 45 mm |
| Style Housing | M8x1 |
| Installation | for flush mounting |
| Range | 1.5 mm |
| Switching output | PNP normally open (NO) |
| Switching frequency | 3000 Hz |
| Housing material | Stainless steel |
| Material sensing surface | PBT |
| Connection | Cable with connector, M8x1-Male, 3-pin, 0.80 m, PUR |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP68 |
| Approval/Conformity | CE cULus EAC |
| Principle of operation | Inductive sensor |
Classifications
| ECLASS 14.0 | 27-27-40-01 |
| ETIM 9.0 | EC002714 |
| UNSPSC 11 | 41111926 |
More Balluff parts
Available on requestBES03MZ BES M30ML-PSC20E-S04G-W01 – Inductive factor 1 sensors
Available on requestBES03NZ BES M05ED-PSC08B-BP02-R50 – Pressure-rated inductive sensors
Available on requestBES03P2 BES 516-538-S4-H – Inductive proximity switches and proximity sensors
NewBalluff BES03P6 Inductive Proximity Sensor, M8x1, Flush, 1.5 mm Range, PNP Normally ClosedNewBalluff BES03PJ Inductive Proximity Sensor, M8x1, Flush, 1.5 mm Range, NPN Normally Closed

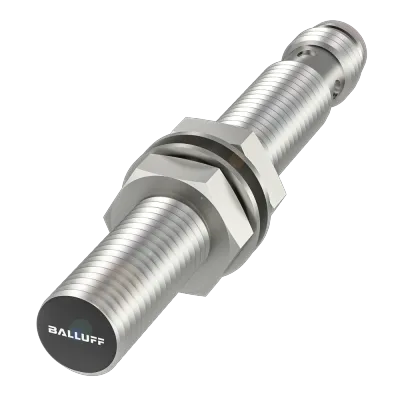

NewBalluff BES03PK Inductive Proximity Sensor, M8x1, Flush, 1.5 mm Range, NPN Normally Closed
