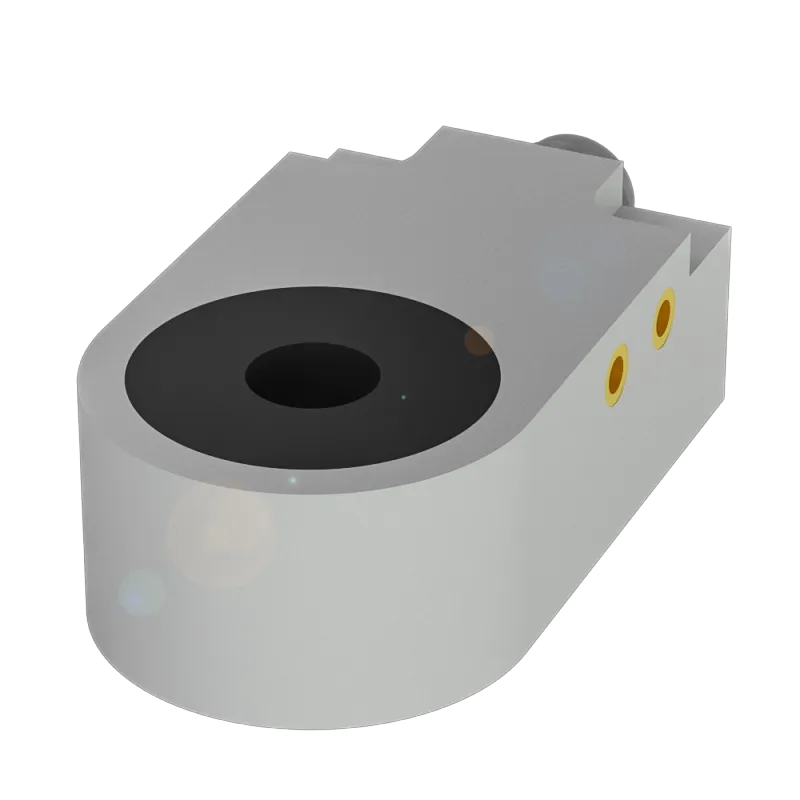

Balluff BES03JA

BES IKVS-010.23-G-S4 – Inductive ring sensors and tube sensors

MPN
BES03JA
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Balluff parts? We buy surplus →

What is the Balluff BES03JA?

Balluff BES03JA (BES IKVS-010.23-G-S4) — Inductive ring sensors and tube sensor. Dimension: 60 x 35 x 20 mm; Style Housing: block style; Pass-through: 10.1 mm; Target size min.: Ball D = 2 mm; Switching output: PNP normally open (NO). PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Type designationBES IKVS-010.23-G-S4
Product groupInductive ring sensors and tube sensors

Key features

Dimension60 x 35 x 20 mm
Style Housingblock style
Pass-through10.1 mm
Target size min.Ball D = 2 mm
Switching outputPNP normally open (NO)
Switching frequency16 Hz
Housing materialPlastic
Material sensing surfacePlastic
ConnectionConnector, M12x1-Male, 4-pin
Operating voltage Ub10...30 VDC
Ambient temperature-25...70 °C
IP ratingIP65
Approval/ConformityCE WEEE
Principle of operationInductive ring sensor

Classifications

ECLASS 14.027-27-40-01
ETIM 9.0EC002714
UNSPSC 1141111926
