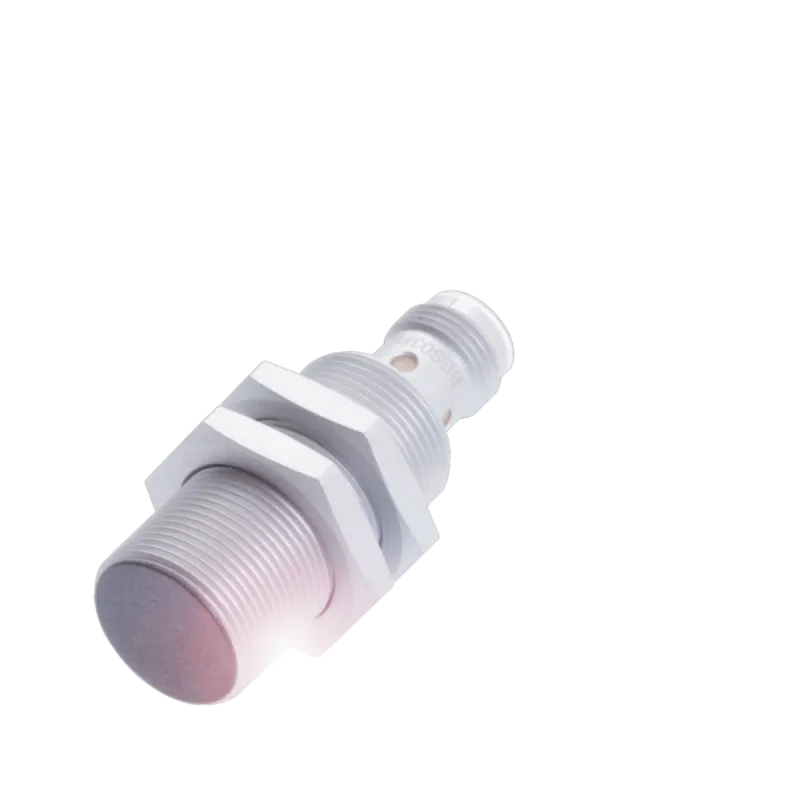

Balluff – BES0398 BES M18MF-USC70B-S04G-U – Inductive proximity switches and proximity sensors

MPN: BES0398 · Brand: Balluff

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Inductive proximity switches and proximity sensors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can BES0398 be shipped?

BES0398 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BES0398 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BES0398 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BES0398, subject to availability and destination.

Balluff BES0398 (BES M18MF-USC70B-S04G-U) — Inductive proximity switches and proximity sensor. Dimension: Ø 18 x 51 mm; Style Housing: M18x1; Installation: for flush mounting; Range: 7 mm; Switching output: Non-polarized normally open (NO). PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Active
Type designation	BES M18MF-USC70B-S04G-U
Product group	Inductive proximity switches and proximity sensors

Key features

Dimension	Ø 18 x 51 mm
Style Housing	M18x1
Installation	for flush mounting
Range	7 mm
Switching output	Non-polarized normally open (NO)
Switching frequency	600 Hz
Housing material	Brass, PTFE coated
Material sensing surface	LCP/PTFE
Connection	Connector, M12x1-Male, 4-pin
Operating voltage Ub	10...36 VDC
Ambient temperature	-25...70 °C
IP rating	IP67
Approval/Conformity	CE cULus EAC
Principle of operation	Inductive sensor
