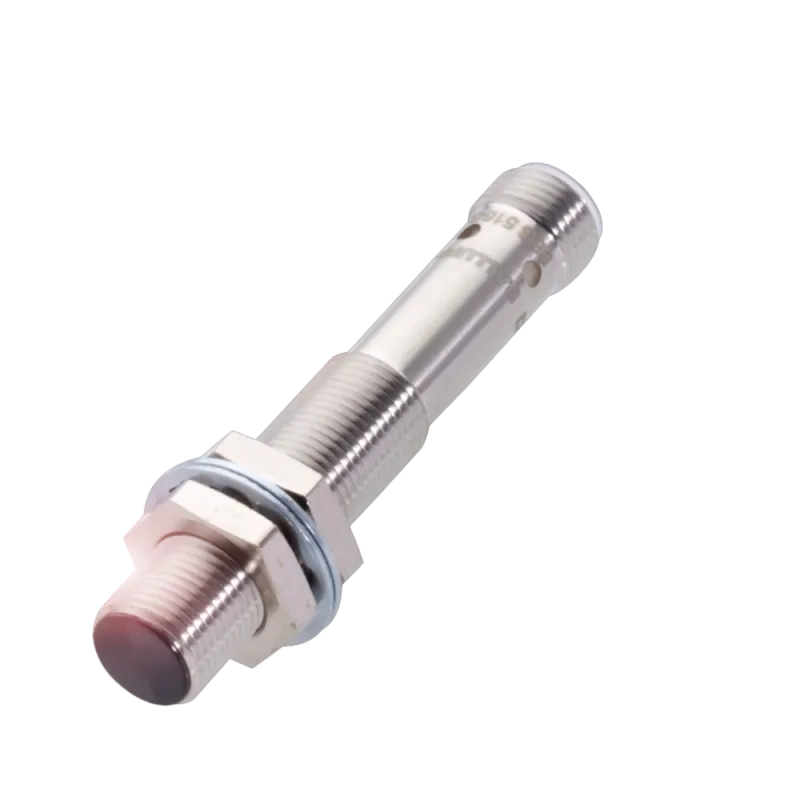

Balluff – BES035R BES 516-325-SA96-G-S4-C – Inductive proximity switches and proximity sensors

MPN: BES035R · Brand: Balluff

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Inductive proximity switches and proximity sensors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can BES035R be shipped?

BES035R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BES035R in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BES035R and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BES035R, subject to availability and destination.

Balluff BES035R (BES 516-325-SA96-G-S4-C) — Inductive proximity switches and proximity sensor. Dimension: Ø 12 x 70 mm; Style Housing: M12x1; Installation: for flush mounting; Range: 4 mm; Switching output: PNP normally open (NO). PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Active
Type designation	BES 516-325-SA96-G-S4-C
Product group	Inductive proximity switches and proximity sensors

Key features

Dimension	Ø 12 x 70 mm
Style Housing	M12x1
Installation	for flush mounting
Range	4 mm
Switching output	PNP normally open (NO)
Switching frequency	1000 Hz
Housing material	Brass, nickel-plated
Material sensing surface	ceramic coated
Connection	Connector, M12x1-Male, 4-pin
Operating voltage Ub	10...30 VDC
Ambient temperature	-25...70 °C
IP rating	IP68
Approval/Conformity	cULus CE EAC WEEE
Principle of operation	Inductive sensor
