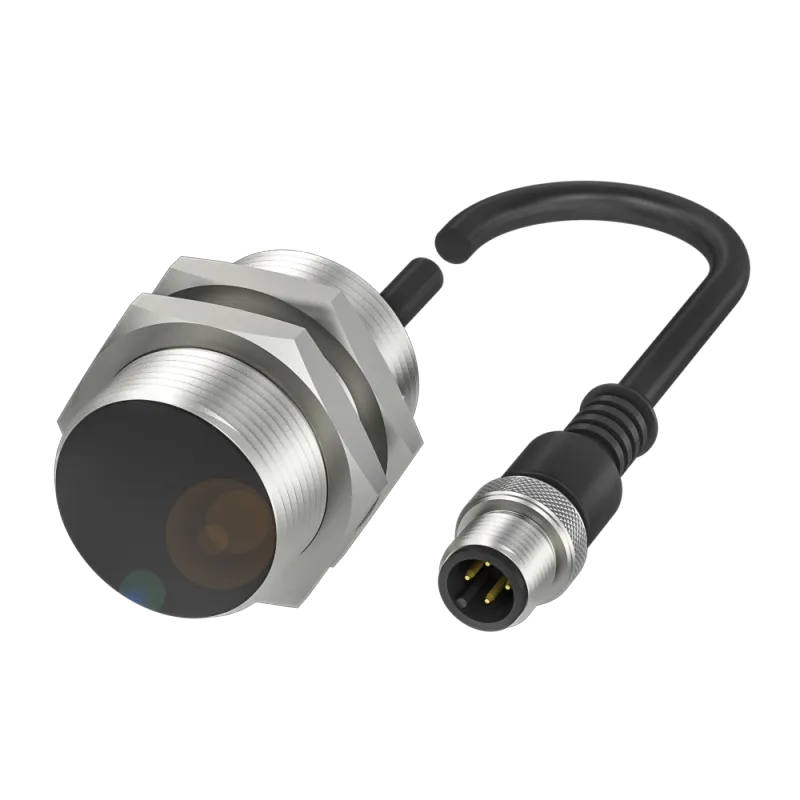

Balluff – BES032A BES M30MF-GSC15B-BP00,3-GS04-101 – Inductive proximity switches and proximity sensors

MPN: BES032A · Brand: Balluff

Price on request

Discontinued by Balluff — we can still source the original BES032A (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Inductive proximity switches and proximity sensors
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
Recommended replacement	BES008Y
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the BES032A now that it is discontinued?

Yes. Balluff has discontinued the BES032A, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Balluff names the BES008Y as its successor — we can quote both.

When can BES032A be shipped?

BES032A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BES032A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BES032A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BES032A, subject to availability and destination.

Balluff BES032A (BES M30MF-GSC15B-BP00,3-GS04-101) — Inductive proximity switches and proximity sensor. Dimension: Ø 30 x 42.5 mm; Style Housing: M30x1.5; Installation: for flush mounting; Range: 15 mm; Switching output: polarized normally open (NO). Discontinued by Balluff; Balluff names BES008Y as alternative. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Discontinued by Balluff
Type designation	BES M30MF-GSC15B-BP00,3-GS04-101
Product group	Inductive proximity switches and proximity sensors
Balluff alternatives	BES008Y

Key features

Dimension	Ø 30 x 42.5 mm
Style Housing	M30x1.5
Installation	for flush mounting
Range	15 mm
Switching output	polarized normally open (NO)
Switching frequency	400 Hz
Housing material	Brass, Nickel-free coated
Material sensing surface	ceramic coated
Connection	Cable with connector, M12x1-Male, 4-pin, 0.30 m, PUR
Operating voltage Ub	10...36 VDC
Ambient temperature	-25...70 °C
IP rating	IP67
Approval/Conformity	cULus CE EAC
Principle of operation	Inductive sensor
