Balluff – BES02YR BES M08EG-PSC15A-S49G-W – Inductive factor 1 sensors
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive factor 1 sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can BES02YR be shipped?
BES02YR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BES02YR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BES02YR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BES02YR, subject to availability and destination.
Balluff BES02YR (BES M08EG-PSC15A-S49G-W) — Inductive factor 1 sensor. Dimension: Ø 8 x 49 mm; Style Housing: M8x1; Installation: for flush mounting; Range: 1.5 mm; Switching output: PNP normally open (NO). PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Type designation | BES M08EG-PSC15A-S49G-W |
| Product group | Inductive factor 1 sensors |
Key features
| Dimension | Ø 8 x 49 mm |
| Style Housing | M8x1 |
| Installation | for flush mounting |
| Range | 1.5 mm |
| Switching output | PNP normally open (NO) |
| Switching frequency | 2000 Hz |
| Housing material | 1.4301 stainless steel, PTFE coated |
| Material sensing surface | PBT/PTFE |
| Connection | Connector, M8x1-Male, 3-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| Magnetic field immune | magnetic field immune (AC/DC) |
| IP rating | IP67 |
| Approval/Conformity | CE WEEE |
| Additional features | Factor 1 Weld immune |
Classifications
| ECLASS 14.0 | 27-27-40-01 |
| ETIM 9.0 | EC002714 |
| UNSPSC 11 | 41111926 |
More Balluff parts

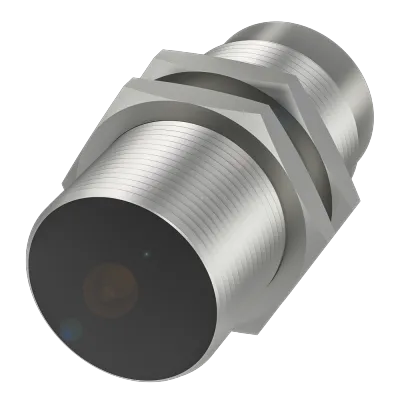

Available on requestBES02YL BES M30MI1-POC22B-S04G – Inductive proximity switches and proximity sensors
