Balluff – BES02YJ BES M30MG1-PSC40F-S04G – Inductive proximity switches and proximity sensors

MPN: BES02YJ · Brand: Balluff

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Inductive proximity switches and proximity sensors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can BES02YJ be shipped?

BES02YJ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BES02YJ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BES02YJ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BES02YJ, subject to availability and destination.

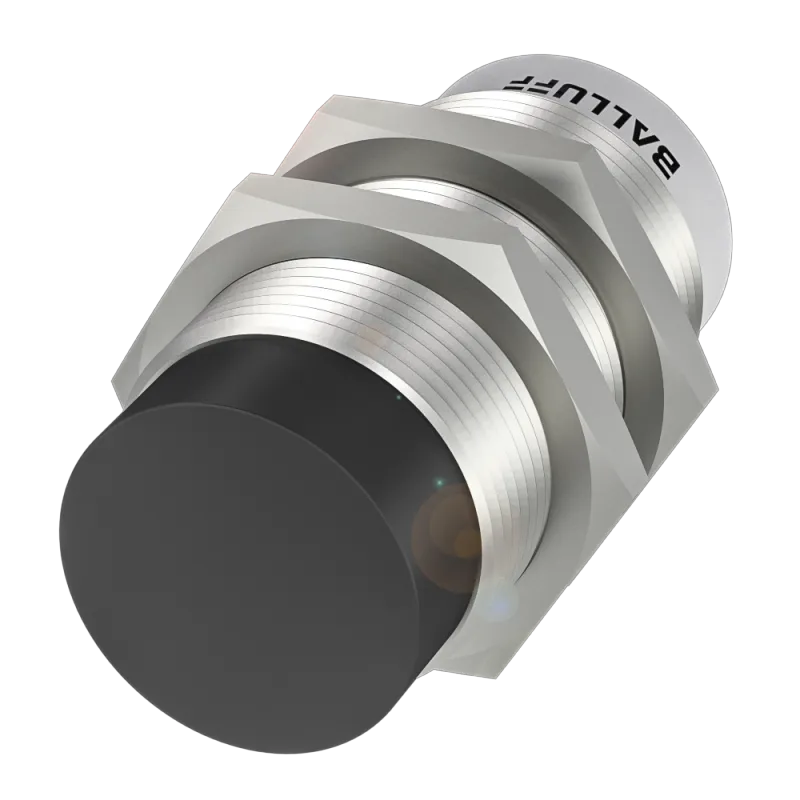

Balluff BES02YJ (BES M30MG1-PSC40F-S04G) — Inductive proximity switches and proximity sensor. Dimension: Ø 30 x 73.5 mm; Style Housing: M30x1.5; Installation: non-flush; Range: 40 mm; Switching output: PNP normally open (NO). PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Active
Type designation	BES M30MG1-PSC40F-S04G
Product group	Inductive proximity switches and proximity sensors

Key features

Dimension	Ø 30 x 73.5 mm
Style Housing	M30x1.5
Installation	non-flush
Range	40 mm
Switching output	PNP normally open (NO)
Switching frequency	100 Hz
Housing material	Brass, Chrome-plated
Material sensing surface	PBT
Connection	Connector, M12x1-Male, 4-pin
Operating voltage Ub	10...30 VDC
Ambient temperature	-25...70 °C
IP rating	IP54
Approval/Conformity	CE cULus WEEE
Principle of operation	Inductive sensor
