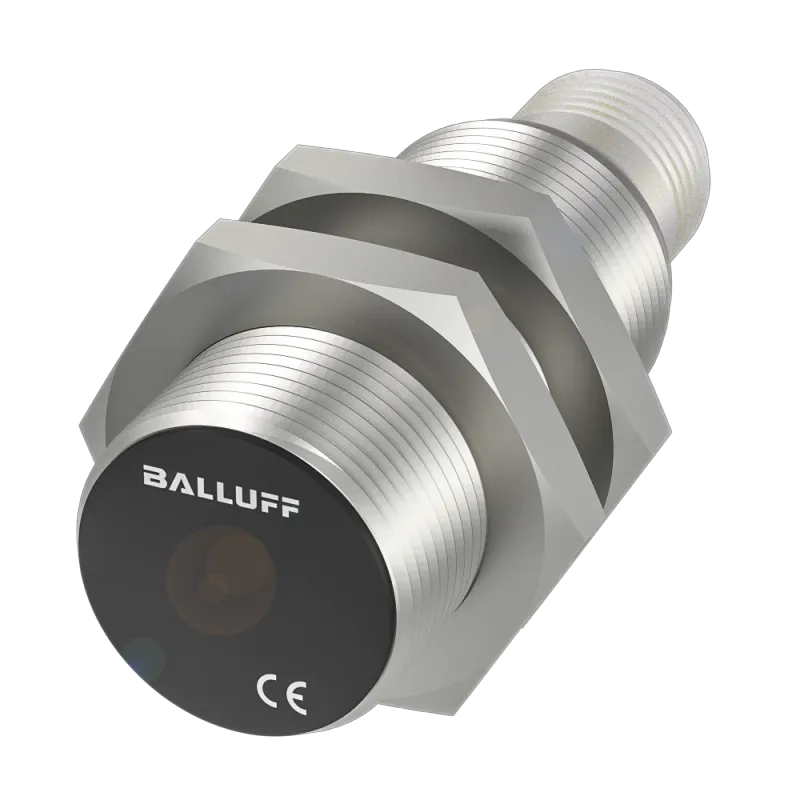

Balluff BES02NP

BES M18MF-UOC70B-S04K – Inductive proximity switches and proximity sensors

MPN
BES02NP
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Balluff parts? We buy surplus →

What is the Balluff BES02NP?

Balluff BES02NP (BES M18MF-UOC70B-S04K) — Inductive proximity switches and proximity sensor. Dimension: Ø 18 x 50 mm; Style Housing: M18x1; Installation: for flush mounting; Range: 7 mm; Switching output: Non-polarized normally closed (NC). PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Type designationBES M18MF-UOC70B-S04K
Product groupInductive proximity switches and proximity sensors

Key features

DimensionØ 18 x 50 mm
Style HousingM18x1
Installationfor flush mounting
Range7 mm
Switching outputNon-polarized normally closed (NC)
Switching frequency600 Hz
Housing materialBrass, Nickel-free coated
Material sensing surfacePA 12
ConnectionConnector, M12x1-Male, 4-pin
Operating voltage Ub10...36 VDC
Ambient temperature-25...70 °C
IP ratingIP67
Approval/ConformitycULus CE EAC
Principle of operationInductive sensor

Classifications

ECLASS 14.027-27-40-01
ETIM 9.0EC002714
UNSPSC 1141111926

BES02NP: frequently asked questions

When can BES02NP be shipped?

BES02NP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BES02NP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BES02NP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BES02NP, subject to availability and destination.

More Balluff parts

Balluff BES02NC – Dimension: Ø 12 x 65 mm. Style Housing: M12x1. Installation: for flush mounting. Range: 4 mm. Switching…
Balluff
BES02NC

Dimension: Ø 12 x 65 mm. Style Housing: M12x1.…

Balluff BES02NL – BES M18MF-GOC70B-S04G – Inductive proximity switches and proximity sensors
Balluff
BES02NL

BES M18MF-GOC70B-S04G – Inductive proximity switches and proximity sensors

Balluff BES02NM – BES M18MF-GOC70B-S04K – Inductive proximity switches and proximity sensors
Balluff
BES02NM

BES M18MF-GOC70B-S04K – Inductive proximity switches and proximity sensors

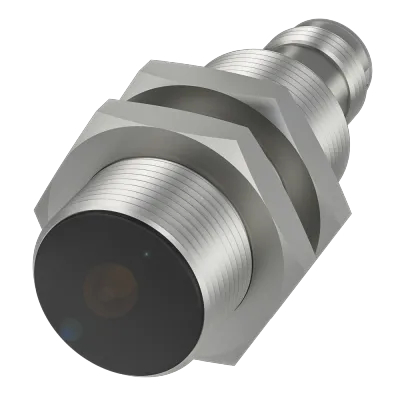

Balluff BES02NN – BES M18MF-UOC70B-S04G – Inductive proximity switches and proximity sensors
