Balluff – BES02KN BES M30ML-PSC10A-S04G-W01 – Inductive factor 1 sensors
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive factor 1 sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can BES02KN be shipped?
BES02KN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BES02KN in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BES02KN and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BES02KN, subject to availability and destination.
Balluff BES02KN (BES M30ML-PSC10A-S04G-W01) — Inductive factor 1 sensor. Dimension: Ø 30 x 65 mm; Style Housing: M30x1.5; Installation: for flush mounting; Range: 10 mm; Switching output: PNP normally open (NO). PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Type designation | BES M30ML-PSC10A-S04G-W01 |
| Product group | Inductive factor 1 sensors |
Key features
| Dimension | Ø 30 x 65 mm |
| Style Housing | M30x1.5 |
| Installation | for flush mounting |
| Range | 10 mm |
| Switching output | PNP normally open (NO) |
| Switching frequency | 600 Hz |
| Housing material | Brass, PTFE coated |
| Material sensing surface | ceramic coated |
| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| Magnetic field immune | magnetic field immune (AC/DC) |
| IP rating | IP67 |
| Approval/Conformity | CE cULus WEEE UKCA |
| Additional features | Factor 1 Weld immune |
Classifications
| ECLASS 14.0 | 27-27-40-01 |
| ETIM 9.0 | EC002714 |
| UNSPSC 11 | 41111926 |
More Balluff parts
Available on requestBES02KE BES M18MI-PSC70B-S04G-W01 – Weld-immune inductive sensors
Available on requestBES02KF BES M18ML-PSC12E-S04G-W – Inductive factor 1 sensors
Available on requestBES02KJ BES M18ML-PSC50A-S04G-W – Inductive factor 1 sensors
Available on requestBES02KL BES M30MI-PSC13B-S04G-W – Inductive factor 1 sensors
Available on requestBES02KR BES R01ZC-PSC50B-BX00.2-GS04-W01 – Magnetic-field-resistant inductive sensors
Available on requestBES02L4 BES 516-211-SA96-S5-EL-W – Magnetic-field-resistant inductive sensors

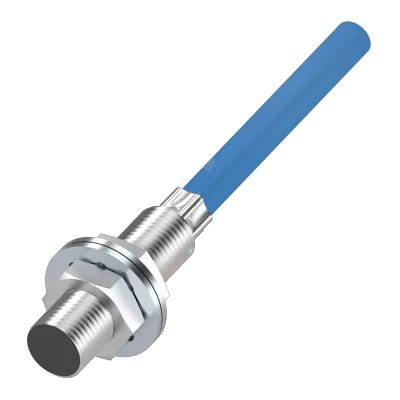

Available on requestBES02L5 BES 516-3005-E2-N-PU-00,35 – Inductive NAMUR sensors
