Balluff – BES02JM BES 516-356-S4-CW – Weld-immune inductive sensors
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Weld-immune inductive sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can BES02JM be shipped?
BES02JM is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BES02JM in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BES02JM and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BES02JM, subject to availability and destination.
Balluff BES02JM (BES 516-356-S4-CW) — Weld-immune inductive sensor. Dimension: Ø 12 x 61 mm; Style Housing: M12x1; Installation: non-flush; Range: 4 mm; Switching output: PNP normally open (NO). PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Type designation | BES 516-356-S4-CW |
| Product group | Weld-immune inductive sensors |
Key features
| Dimension | Ø 12 x 61 mm |
| Style Housing | M12x1 |
| Installation | non-flush |
| Range | 4 mm |
| Switching output | PNP normally open (NO) |
| Switching frequency | 1000 Hz |
| Housing material | Stainless steel, PTFE coated |
| Material sensing surface | PTFE |
| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| Magnetic field immune | magnetic field immune (AC/DC) |
| IP rating | IP67 |
| Approval/Conformity | cULus CE UKCA WEEE |
Classifications
| ECLASS 14.0 | 27-27-40-01 |
| ETIM 9.0 | EC002714 |
| UNSPSC 11 | 41111926 |
More Balluff parts
Available on requestBES02J6 BES 516-325-S4-W – Weld-immune inductive sensors
Available on requestBES02JE BES 516-326-SA30-S4-CW – Magnetic-field-resistant inductive sensors
Available on requestBES02JH BES 516-327-S4-CW – Magnetic-field-resistant inductive sensors
Available on requestBES02JJ BES 516-327-S4-W – Magnetic-field-resistant inductive sensors
Available on requestBES02JN BES 516-356-S4-W – Weld-immune inductive sensors
Available on requestBES02JY BES M12MD1-PSC80E-S04G-W01 – Inductive factor 1 sensors
Available on requestBES02K0 BES M12MF1-PSC30A-S04G-W01 – Inductive factor 1 sensors

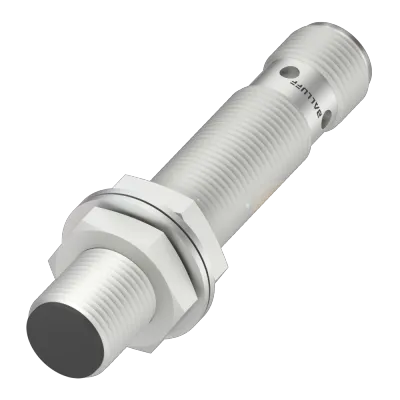

Available on requestBES02K2 BES M12MI-PSC30B-S04G-W01 – Inductive proximity switches and proximity sensors
