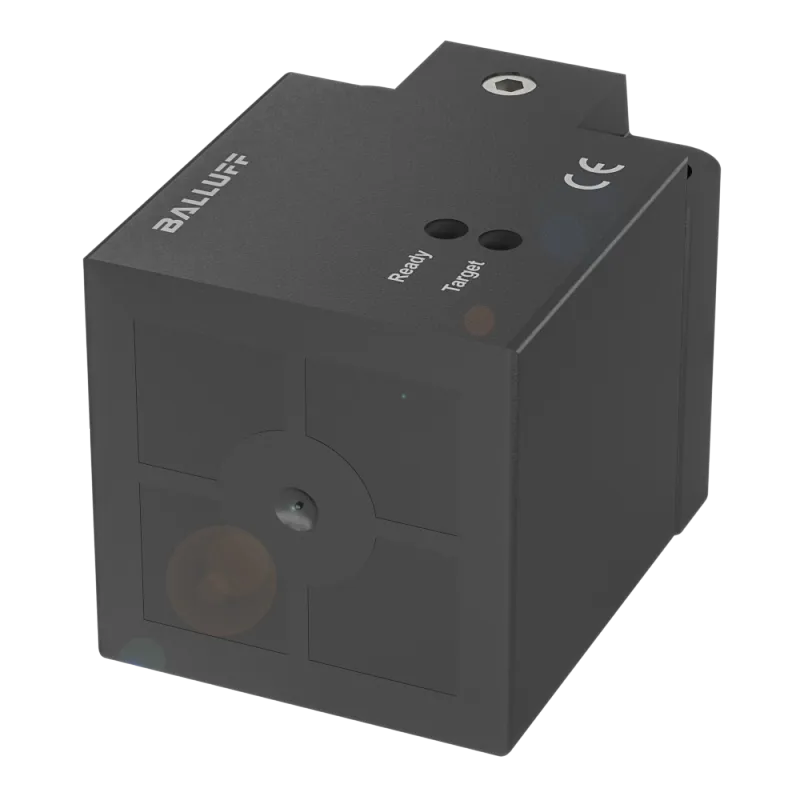

Balluff – BES021C BES Q40KFU-PAC25E-S04G-007 – Inductive factor 1 sensors

MPN: BES021C · Brand: Balluff

Price on request

Discontinued by Balluff — we can still source the original BES021C (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Inductive factor 1 sensors
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
Recommended replacement	BES021A, BES0224
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the BES021C now that it is discontinued?

Yes. Balluff has discontinued the BES021C, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Balluff names the BES021A as its successor — we can quote both.

When can BES021C be shipped?

BES021C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BES021C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BES021C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BES021C, subject to availability and destination.

Balluff BES021C (BES Q40KFU-PAC25E-S04G-007) — Inductive factor 1 sensor. Dimension: 40 x 40 x 62 mm; Style Housing: 40x40; Installation: non-flush; Range: 25 mm; Switching output: PNP normally open/normally closed (NO/NC). Discontinued by Balluff; Balluff names BES021A, BES0224 as alternative. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Discontinued by Balluff
Type designation	BES Q40KFU-PAC25E-S04G-007
Product group	Inductive factor 1 sensors
Balluff alternatives	BES021A, BES0224

Key features

Dimension	40 x 40 x 62 mm
Style Housing	40x40
Installation	non-flush
Range	25 mm
Switching output	PNP normally open/normally closed (NO/NC)
Switching frequency	250 Hz
Housing material	PBT
Material sensing surface	PBT
Connection	Connector, M12x1-Male, 4-pin
Operating voltage Ub	10...30 VDC
Ambient temperature	-25...70 °C
Magnetic field immune	magnetic field immune (AC/DC)
IP rating	IP67
Approval/Conformity	CE cULus EAC
Additional features	Factor 1
