Balluff BES01TL

BES Q08ZC-NOC20B-BP02 – Inductive proximity switches and proximity sensors

MPN
BES01TL
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Balluff parts? We buy surplus →

What is the Balluff BES01TL?

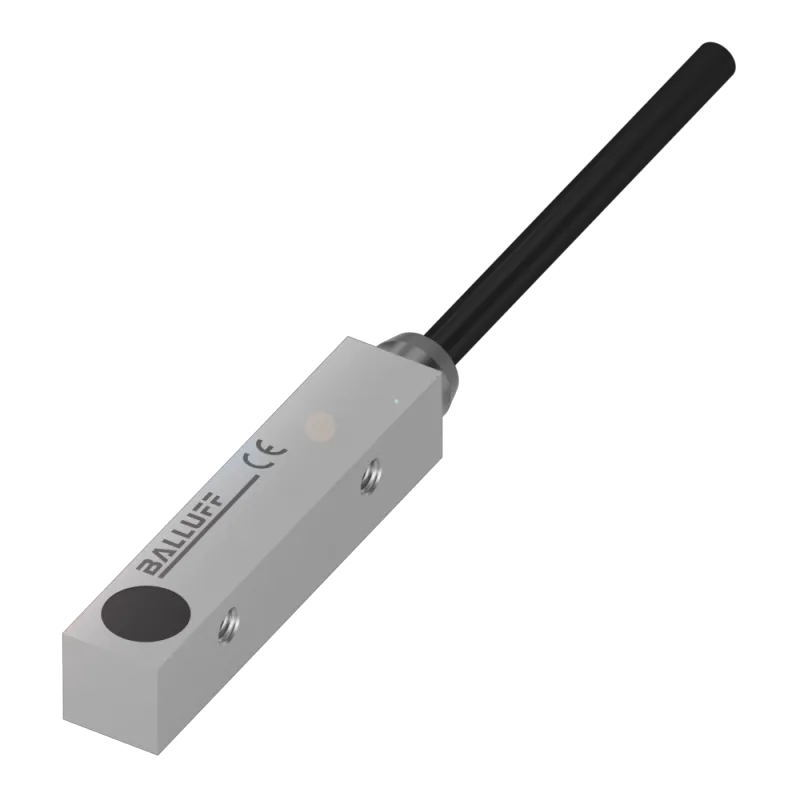

Balluff BES01TL (BES Q08ZC-NOC20B-BP02) — Inductive proximity switches and proximity sensor. Dimension: 40 x 8 x 8 mm; Style Housing: 8x8; Installation: for flush mounting; Range: 2 mm; Switching output: NPN normally closed (NC). PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Type designationBES Q08ZC-NOC20B-BP02
Product groupInductive proximity switches and proximity sensors

Key features

Dimension40 x 8 x 8 mm
Style Housing8x8
Installationfor flush mounting
Range2 mm
Switching outputNPN normally closed (NC)
Switching frequency3000 Hz
Housing materialZinc, Die casting
Material sensing surfacePBT
ConnectionCable, 2.00 m, PUR
Operating voltage Ub10...30 VDC
Ambient temperature-25...70 °C
IP ratingIP67
Approval/ConformityCE cULus EAC WEEE
Principle of operationInductive sensor

Classifications

ECLASS 14.027-27-40-01
ETIM 9.0EC002714
UNSPSC 1141111926

BES01TL: frequently asked questions

When can BES01TL be shipped?

BES01TL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BES01TL in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BES01TL and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BES01TL, subject to availability and destination.
