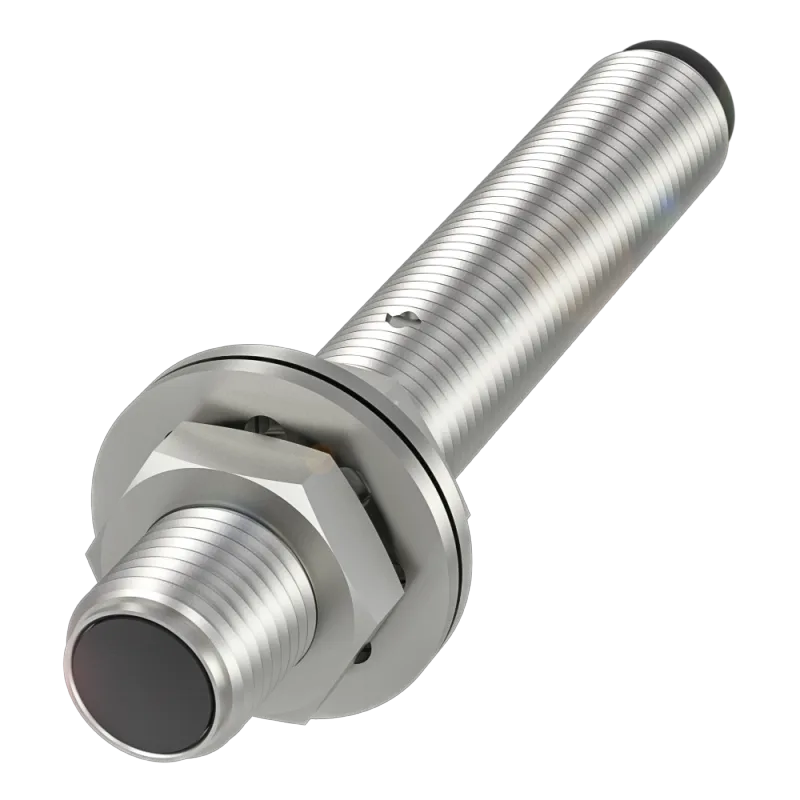

Balluff – BES0130 BES M05ED-NOC15B-S26G – Inductive proximity switches and proximity sensors

MPN: BES0130 · Brand: Balluff

Price on request

Discontinued by Balluff — we can still source the original BES0130 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Inductive proximity switches and proximity sensors
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
Recommended replacement	BES050H
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the BES0130 now that it is discontinued?

Yes. Balluff has discontinued the BES0130, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Balluff names the BES050H as its successor — we can quote both.

When can BES0130 be shipped?

BES0130 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BES0130 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BES0130 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BES0130, subject to availability and destination.

Balluff BES0130 (BES M05ED-NOC15B-S26G) — Inductive proximity switches and proximity sensor. Dimension: Ø 5 x 35 mm; Style Housing: M5x0.5; Installation: for flush mounting; Range: 1.5 mm; Switching output: NPN normally closed (NC). Discontinued by Balluff; Balluff names BES050H as alternative. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Discontinued by Balluff
Type designation	BES M05ED-NOC15B-S26G
Product group	Inductive proximity switches and proximity sensors
Balluff alternatives	BES050H, BES0508

Key features

Dimension	Ø 5 x 35 mm
Style Housing	M5x0.5
Installation	for flush mounting
Range	1.5 mm
Switching output	NPN normally closed (NC)
Switching frequency	3000 Hz
Housing material	Stainless steel
Material sensing surface	PBT
Connection	Connector, M5x0.5-Male
Operating voltage Ub	10...30 VDC
Ambient temperature	-25...70 °C
IP rating	IP67
Approval/Conformity	CE cULus EAC WEEE
Principle of operation	Inductive sensor
