Balluff – BES00KJ BES 516-3018-G-E4-C-PU-05 – Inductive proximity switches and proximity sensors
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive proximity switches and proximity sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can BES00KJ be shipped?
BES00KJ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BES00KJ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BES00KJ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BES00KJ, subject to availability and destination.

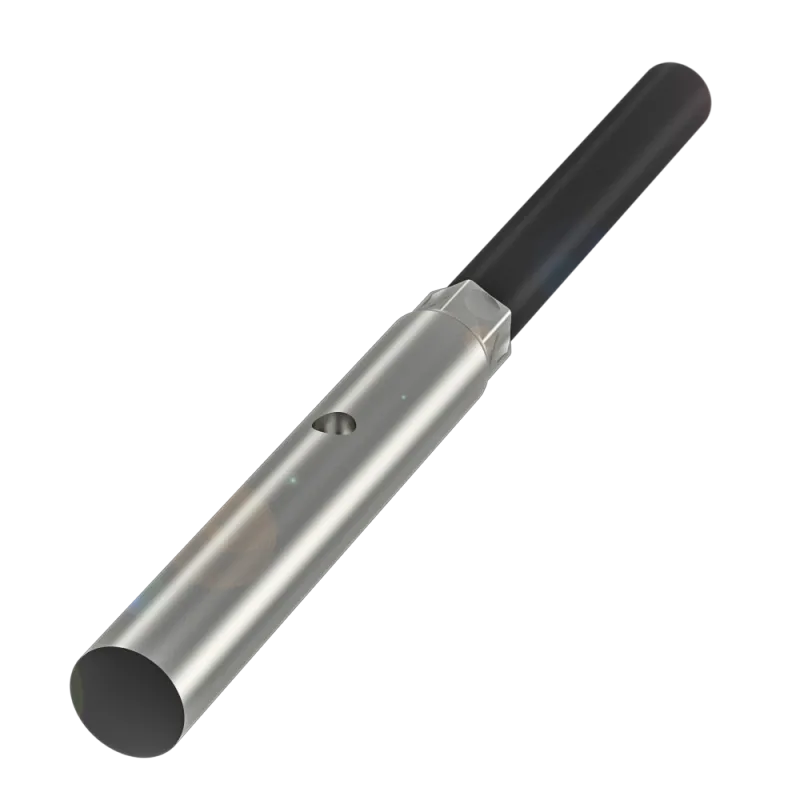

Balluff BES00KJ (BES 516-3018-G-E4-C-PU-05) — Inductive proximity switches and proximity sensor. Dimension: Ø 4 x 27 mm; Style Housing: D4.0; Installation: for flush mounting; Range: 1.5 mm; Switching output: NPN normally closed (NC). PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Type designation | BES 516-3018-G-E4-C-PU-05 |
| Product group | Inductive proximity switches and proximity sensors |
Key features
| Dimension | Ø 4 x 27 mm |
| Style Housing | D4.0 |
| Installation | for flush mounting |
| Range | 1.5 mm |
| Switching output | NPN normally closed (NC) |
| Switching frequency | 3000 Hz |
| Housing material | Stainless steel |
| Material sensing surface | PBT |
| Connection | Cable, 5.00 m, PUR |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP67 |
| Approval/Conformity | cULus CE UKCA WEEE |
| Principle of operation | Inductive sensor |
Classifications
| ECLASS 14.0 | 27-27-40-01 |
| ETIM 9.0 | EC002714 |
| UNSPSC 11 | 41111926 |
