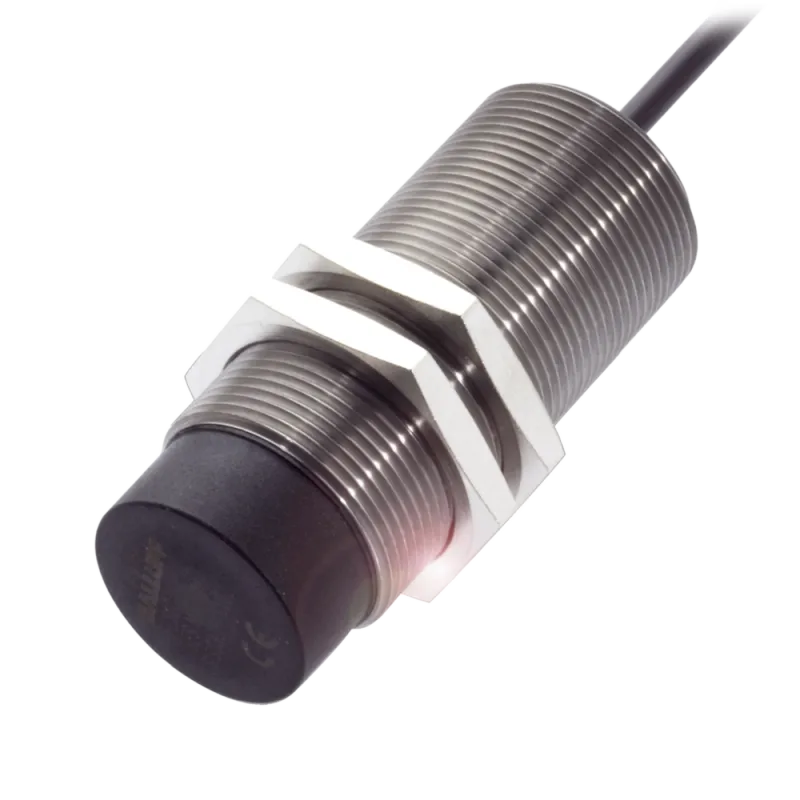

Balluff – BES00AR BES M30MM-POC30F-BP02 – Inductive proximity switches and proximity sensors
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive proximity switches and proximity sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can BES00AR be shipped?
BES00AR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BES00AR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BES00AR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BES00AR, subject to availability and destination.
Balluff BES00AR (BES M30MM-POC30F-BP02) — Inductive proximity switches and proximity sensor. Dimension: Ø 30 x 76.5 mm; Style Housing: M30x1.5; Installation: non-flush; Range: 30 mm; Switching output: PNP normally closed (NC). PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Type designation | BES M30MM-POC30F-BP02 |
| Product group | Inductive proximity switches and proximity sensors |
Key features
| Dimension | Ø 30 x 76.5 mm |
| Style Housing | M30x1.5 |
| Installation | non-flush |
| Range | 30 mm |
| Switching output | PNP normally closed (NC) |
| Switching frequency | 300 Hz |
| Housing material | Brass, Nickel-free coated |
| Material sensing surface | PBT |
| Connection | Cable, 2.00 m, PUR |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP67 |
| Approval/Conformity | CE cULus EAC |
| Principle of operation | Inductive sensor |
Classifications
| ECLASS 14.0 | 27-27-40-01 |
| ETIM 9.0 | EC002714 |
| UNSPSC 11 | 41111926 |
