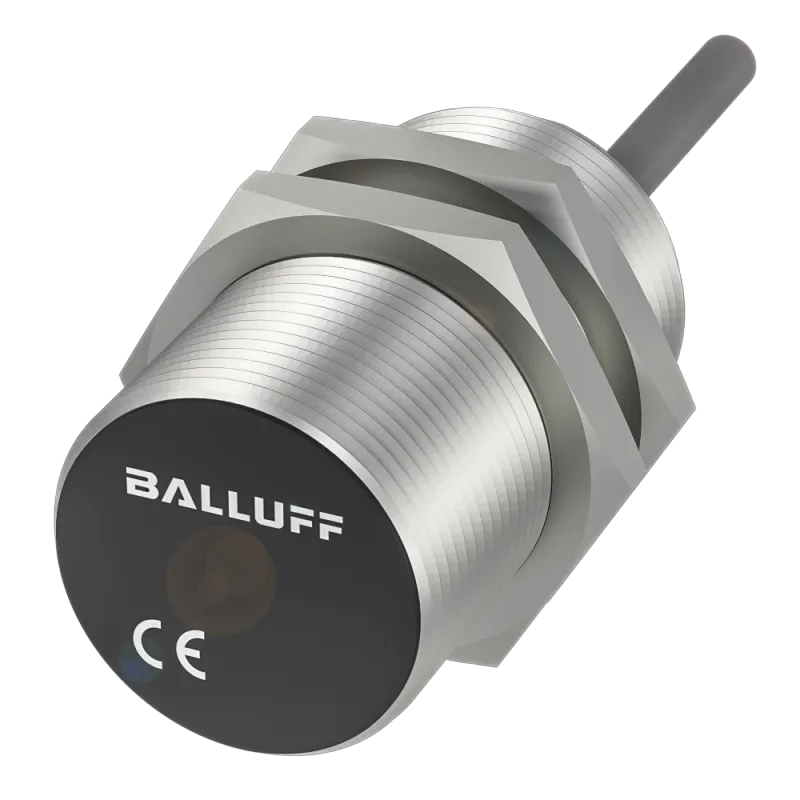

Balluff – BES009L BES M30MI-POC10B-BP03 – Inductive proximity switches and proximity sensors

MPN: BES009L · Brand: Balluff

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Inductive proximity switches and proximity sensors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can BES009L be shipped?

BES009L is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BES009L in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BES009L and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BES009L, subject to availability and destination.

Balluff BES009L (BES M30MI-POC10B-BP03) — Inductive proximity switches and proximity sensor. Dimension: Ø 30 x 56 mm; Style Housing: M30x1.5; Installation: for flush mounting; Range: 10 mm; Switching output: PNP normally closed (NC). PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Active
Type designation	BES M30MI-POC10B-BP03
Product group	Inductive proximity switches and proximity sensors

Key features

Dimension	Ø 30 x 56 mm
Style Housing	M30x1.5
Installation	for flush mounting
Range	10 mm
Switching output	PNP normally closed (NC)
Switching frequency	400 Hz
Housing material	Brass, nickel-plated
Material sensing surface	PA 12
Connection	Cable, 3.00 m, TPU
Operating voltage Ub	12...30 VDC
Ambient temperature	-25...70 °C
IP rating	IP68
Approval/Conformity	CE cULus EAC
Principle of operation	Inductive sensor
