Balluff – BAW003J BAW M18MI2-UAC50B-BP00.2-GS115-002 – Inductive distance sensors
Discontinued by Balluff — we can still source the original BAW003J (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive distance sensors |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Recommended replacement | BAW002M |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the BAW003J now that it is discontinued?
Yes. Balluff has discontinued the BAW003J, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Balluff names the BAW002M as its successor — we can quote both.
When can BAW003J be shipped?
BAW003J is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BAW003J in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BAW003J and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BAW003J, subject to availability and destination.
Balluff BAW003J (BAW M18MI2-UAC50B-BP00.2-GS115-002) — Inductive distance sensor. Dimension: Ø 18 x 76.5 mm; Style Housing: M18x1; Installation: for flush mounting; Range: 1...5 mm; Analog output: Analog, voltage falling on approach. Discontinued by Balluff; Balluff names BAW002M as alternative. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Discontinued by Balluff |
| Type designation | BAW M18MI2-UAC50B-BP00.2-GS115-002 |
| Product group | Inductive distance sensors |
| Balluff alternatives | BAW002M |
Key features
| Dimension | Ø 18 x 76.5 mm |
| Style Housing | M18x1 |
| Installation | for flush mounting |
| Range | 1...5 mm |
| Analog output | Analog, voltage falling on approach |
| Output characteristic | falling on approach |
| Limit frequency –3 dB | 500 Hz |
| Switching output | PNP normally open (NO) |
| Switching frequency | 1000 Hz |
| Repeat accuracy per BWN | ±8.0 µm |
| Non-linearity max. | ±120 µm |
| Housing material | Brass, nickel plated |
| Material sensing surface | PBT |
| Connection | Cable with connector, M12x1-Male, 8-pin, 0.20 m, PUR |
| Operating voltage Ub | 15...30 VDC |
| Ambient temperature | -10...70 °C |
| IP rating | IP67 |
| Approval/Conformity | CE cULus EAC |
| Principle of operation | Inductive Distance Sensor |
Classifications
| ECLASS 14.0 | 27-27-40-03 |
| ETIM 9.0 | EC001818 |
| UNSPSC 11 | 41111926 |
More Balluff parts
Available on requestBalluff BAW0031 – Dimension: 30 x 10 x 6 mm. Style Housing: block style.…
Available on requestBAW0032 BAW R03KC-UAE40B-BP03 – Inductive distance sensors
Available on requestBalluff BAW0034 – Dimension: 30 x 20 x 8 mm. Style Housing: block style.…
Available on requestBalluff BAW003E – Dimension: 38.5 x 14 x 17 mm. Style Housing: block style.…
Available on requestBAW003K BAW MKK-050.19-S4 – Inductive distance sensors
Available on requestBAW003L BAW MKV-020.19-S4 – Inductive distance sensors

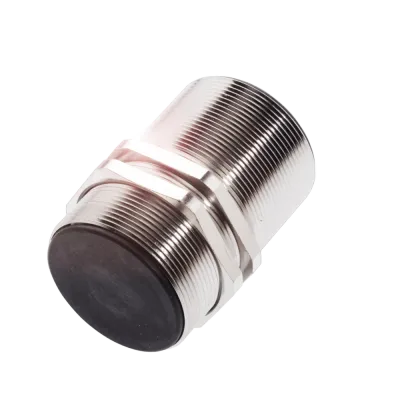

Available on requestBAW003M BAW MKZ-471.19-S4 – Inductive distance sensors
