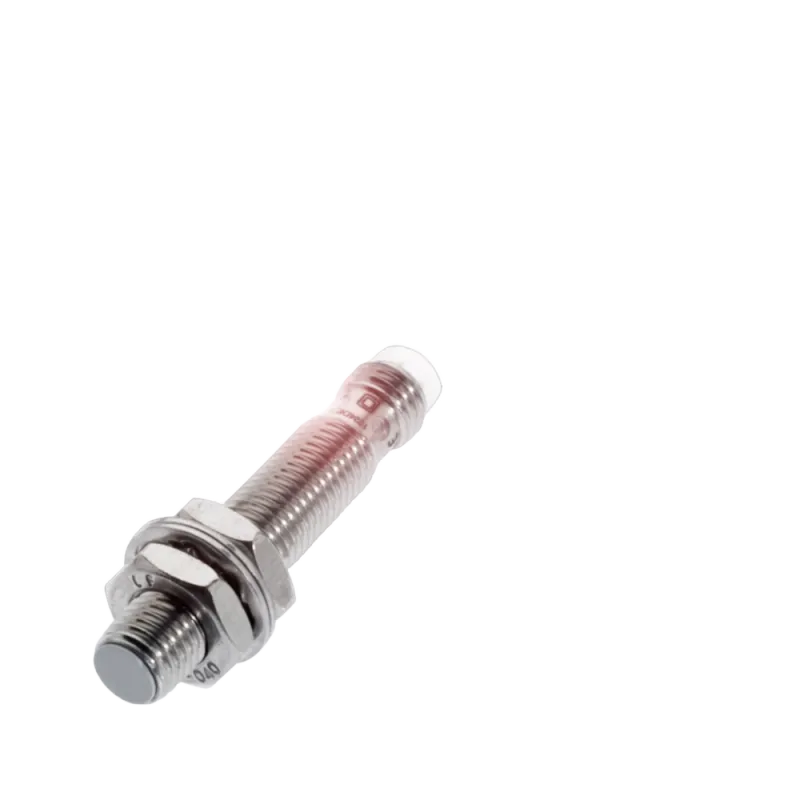

Balluff – BAW000M BAW M08EF-UAC15B-S49G – Inductive distance sensors
Discontinued by Balluff — we can still source the original BAW000M (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive distance sensors |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Recommended replacement | BAW000T |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the BAW000M now that it is discontinued?
Yes. Balluff has discontinued the BAW000M, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Balluff names the BAW000T as its successor — we can quote both.
When can BAW000M be shipped?
BAW000M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BAW000M in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BAW000M and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BAW000M, subject to availability and destination.
Balluff BAW000M (BAW M08EF-UAC15B-S49G) — Inductive distance sensor. Dimension: Ø 8 x 45 mm; Style Housing: M8x1; Installation: for flush mounting; Range: 0.5...1.5 mm; Analog output: Analog, voltage 0...10 V. Discontinued by Balluff; Balluff names BAW000T as alternative. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Discontinued by Balluff |
| Type designation | BAW M08EF-UAC15B-S49G |
| Product group | Inductive distance sensors |
| Balluff alternatives | BAW000T |
Key features
| Dimension | Ø 8 x 45 mm |
| Style Housing | M8x1 |
| Installation | for flush mounting |
| Range | 0.5...1.5 mm |
| Analog output | Analog, voltage 0...10 V |
| Output characteristic | falling on approach |
| Limit frequency –3 dB | 1000 Hz |
| Repeat accuracy per BWN | ±8 µm |
| Non-linearity max. | ±30 µm |
| Housing material | Stainless steel |
| Material sensing surface | PBT |
| Connection | Connector, M8x1-Male, 3-pin |
| Operating voltage Ub | 15...30 VDC |
| Ambient temperature | -10...70 °C |
| IP rating | IP67 |
| Approval/Conformity | CE cULus EAC WEEE |
| Principle of operation | Inductive Distance Sensor |
Classifications
| ECLASS 14.0 | 27-27-40-03 |
| ETIM 9.0 | EC001818 |
| UNSPSC 11 | 41111926 |
