Balluff – BAM00W6 BOS R-32-0,40 – Reflectors and reflective foils
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Reflectors and reflective foils |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can BAM00W6 be shipped?
BAM00W6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BAM00W6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BAM00W6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BAM00W6, subject to availability and destination.

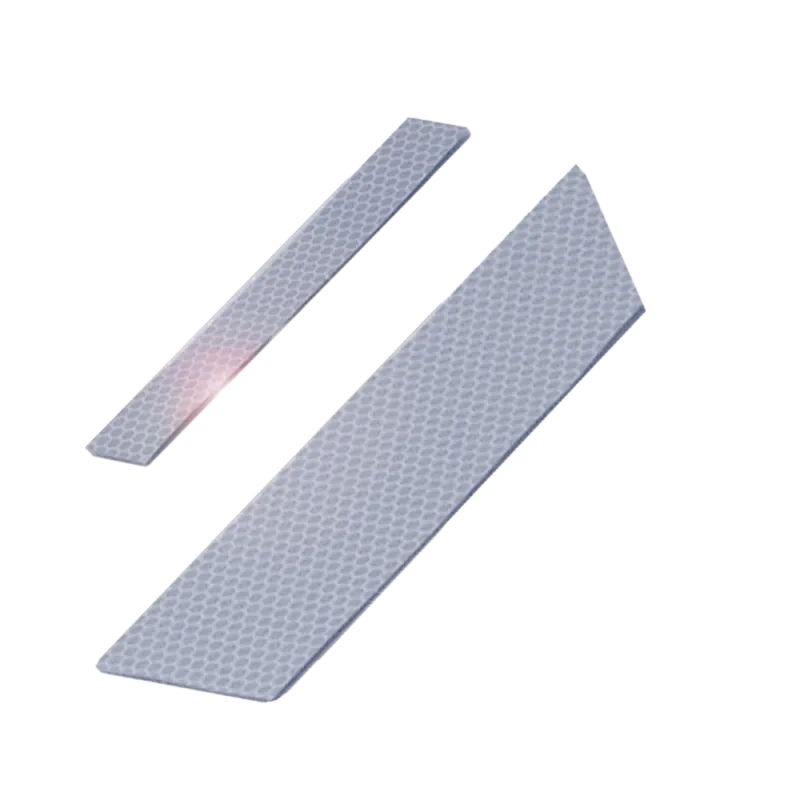

Balluff BAM00W6 (BOS R-32-0,40) — Reflectors and reflective foils. Version: Reflective foil, micro-pyramids; Use: for photoelectric retroreflective sensors; Style: Film cutoff Rectangular; Dimension: 40 x 90 x 0.5 mm; Sensing surface: 45.0 cm². PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Type designation | BOS R-32-0,40 |
| Product group | Reflectors and reflective foils |
Key features
| Version | Reflective foil, micro-pyramids |
| Use | for photoelectric retroreflective sensors |
| Style | Film cutoff Rectangular |
| Dimension | 40 x 90 x 0.5 mm |
| Sensing surface | 45.0 cm² |
| Ambient temperature | -20...60 °C |
| Material sensing surface | PMMA |
| Material | Film |
| Light type | non-polarized light, also for polarized light |
| Mounting part | Self-adhesive |
Classifications
| ECLASS 14.0 | 27-27-36-01 |
| ETIM 9.0 | EC002467 |
| UNSPSC 11 | 39121551 |
