Balluff BAE00AM

BAE LX-VS-DR090 – Dark field lights

MPN
BAE00AM
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Balluff parts? We buy surplus →

What is the Balluff BAE00AM?

Balluff BAE00AM (BAE LX-VS-DR090) — Dark field lights. Connection: Cable with connector, M12x1-Male, 4-pin, 0.3 m; Version: Dark field light; Dimension: 130 x 9.5 x 155 mm; Rated operating voltage Ue DC: 24 V; Operating mode: Normal (continuous operation). PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Type designationBAE LX-VS-DR090
Product groupDark field lights

Key features

ConnectionCable with connector, M12x1-Male, 4-pin, 0.3 m
VersionDark field light
Dimension130 x 9.5 x 155 mm
Rated operating voltage Ue DC24 V
Operating modeNormal (continuous operation)
Current draw max.416 mA
MaterialAluminium anodized, black PMMA
Illumination areaØ 90 mm
Light typeLED, red light
Wave length617 nm
Illuminence (0.1 m)2250 Lux
Ambient temperature-10...55 °C
Approval/ConformityCE UKCA WEEE
IP ratingIP40

Classifications

ECLASS 14.027-31-02-04
ETIM 9.0EC000996
UNSPSC 1139110000

BAE00AM: frequently asked questions

When can BAE00AM be shipped?

BAE00AM is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BAE00AM in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BAE00AM and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BAE00AM, subject to availability and destination.

More Balluff parts

Balluff BAE008W – BFS Z-IK01 – Rangefinder / tool
Balluff
BAE008W

BFS Z-IK01 – Rangefinder / tool

Balluff BAE0093 – BIS C-820-0-004/PCB – Portable LF read/write units (70/455kHz)
Balluff
BAE0093

BIS C-820-0-004/PCB – Portable LF read/write units (70/455kHz)

Balluff BAE0096 – BIS C-852 – Portable LF read/write units (70/455kHz)
Balluff
BAE0096

BIS C-852 – Portable LF read/write units (70/455kHz)

Balluff BAE0097 – BIS C-853 – Portable LF read/write units (70/455kHz)
Balluff
BAE0097

BIS C-853 – Portable LF read/write units (70/455kHz)

Balluff BAE00AN – BAE LX-VS-RW100 – Ring lights
Balluff
BAE00AN

BAE LX-VS-RW100 – Ring lights

Balluff BAE00AP – BAE LX-VS-LR085 – Strip lights
Balluff
BAE00AP

BAE LX-VS-LR085 – Strip lights

Balluff BAE00AR – BAE LX-VS-LW085 – Strip lights
Balluff
BAE00AR

BAE LX-VS-LW085 – Strip lights

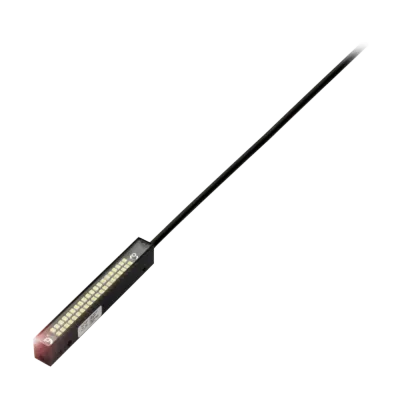

Balluff BAE00AT – BAE LX-VS-LI085 – Strip lights
