Balluff – BAE0036 BAE PS-XA-1W-12-015-001 – Power supplies for the control cabinet
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Power supplies for the control cabinet |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can BAE0036 be shipped?
BAE0036 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BAE0036 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BAE0036 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BAE0036, subject to availability and destination.
Balluff BAE0036 (BAE PS-XA-1W-12-015-001) — Power supplies for the control cabinet. Dimension: 22.5 x 90 x 114 mm; Version: DIN rail; Mounting part: DIN rail mount; Housing material: Plastic; Connection: Terminal, 0.25...2.5 mm². PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Type designation | BAE PS-XA-1W-12-015-001 |
| Product group | Power supplies for the control cabinet |
Key features
| Dimension | 22.5 x 90 x 114 mm |
| Version | DIN rail |
| Mounting part | DIN rail mount |
| Housing material | Plastic |
| Connection | Terminal, 0.25...2.5 mm² |
| Input voltage | 100…240 V AC, 1-phase |
| Rated output voltage DC | 12 V |
| Rated output current | 1.5 A |
| IP rating | IP20 |
| Approval/Conformity | CE CCC cULus WEEE |
| Ambient temperature | -20...70 °C |
Classifications
| ECLASS 14.0 | 27-04-07-01 |
| ETIM 9.0 | EC002540 |
| UNSPSC 11 | 39121004 |
More Balluff parts
Available on requestBAE002L BOS S-M02 – Signal converters

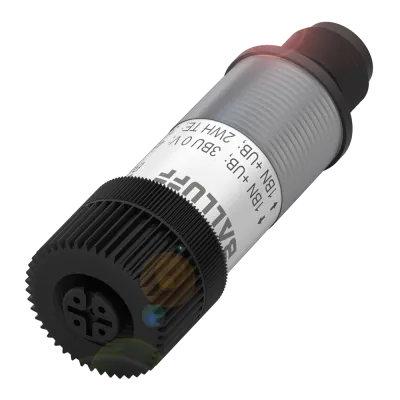

Available on requestBAE002M BOS S-T01 – Signal converters
