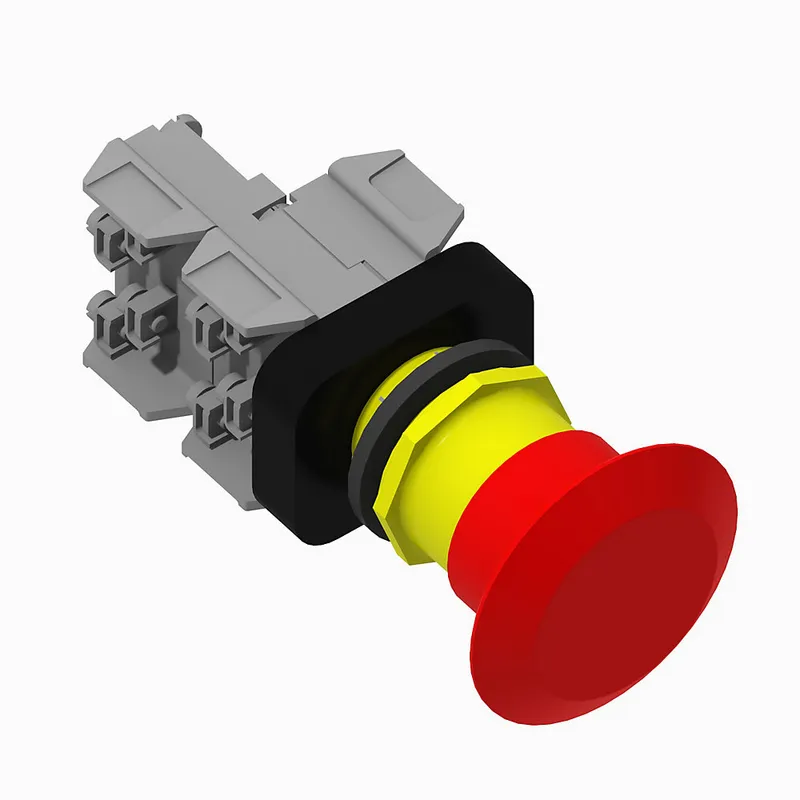

Allen-Bradley – 800H-TFRXJTQH2RG1V 30mm Trigger Action E-Stop 800H PB

MPN: 800H-TFRXJTQH2RG1V · Brand: Rockwell Automation / Allen-Bradley

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	800T/H Operators
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 800H-TFRXJTQH2RG1V be shipped?

800H-TFRXJTQH2RG1V is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 800H-TFRXJTQH2RG1V in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 800H-TFRXJTQH2RG1V and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 800H-TFRXJTQH2RG1V, subject to availability and destination.

Allen-Bradley 800H-TFRXJTQH2RG1V — 30mm Trigger Action E-Stop 800H PB. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Active
Repair options available	No

Specifications

Contact block configuration	2-NO 2-NC PenTUFF contacts
Contact block electrical design life (cycles, at max. load)	1000000
Contact block operational voltage, max	300V AC @ 150V DC
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block termination wire range	14 - 18 AWG (x2)
Contact block thermal current rating	2.5 A
Contact block utilization category (AC)	C300, AC-15
Contact block utilization category (DC)	R150, DC-13
Enclosure compatibility (NEMA type)	1, 4, 4X, 12, 13
Hazardous location rating	false
Hole diameter	30.5 mm
Humidity	50 %
Illumination lamp type	LED
Illumination module input voltage	12...130V AC/DC
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Illumination module termination wire range	14 - 18 AWG (x2)
Illumination module type	Full voltage
Latch material	Plastic / metal
Operating temperature	-25 °C
Operator cap/button material	Plastic
Operator cap/button shape	Round
Operator cap/button size	60
Operator cap color	Red
Operator cap text/symbol	No legend on cap
Operator cap type	Jumbo mushroom head
Operator construction/material	Plastic
Operator function	2-position maintained
Operator mechanical design life (cycles, min.)	250000
Operator mechanism	Trigger-action
Operator special function	Twist release
Operator type	Emergency stop push button
Shock	25 G (contact fragility)/100 G (no damage)
Storage temperature	-40 °C
Suitable for illumination	true
Termination style	Screw
Terminations with finger safe covers	false
Vibration	10 G maximum
