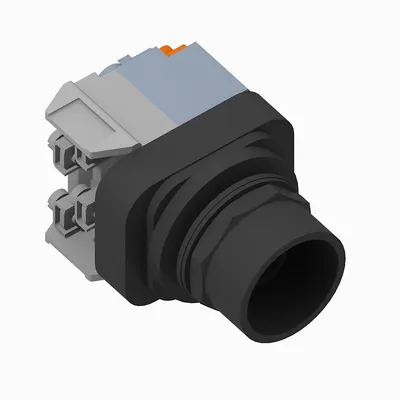

Allen-Bradley 800H-PRT46W

30mm Pilot Light 800H PB

MPN
800H-PRT46W
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 800H-PRT46W?

Allen-Bradley 800H-PRT46W — 30mm Pilot Light 800H PB. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Repair options availableNo

Specifications

StylePush-to-Test Type
Type30mm Pilot Light
Contact block configuration1-NO 1-NC standard contacts
Contact block electrical design life (cycles, at max. load)1000000
Contact block operational voltage, max600V AC @ 600V DC
Contact block termination tightening torque6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block termination wire range14 - 18 AWG (x2)
Contact block thermal current rating10 A
Contact block utilization category (AC)A600, AC-15
Contact block utilization category (DC)Q600, DC-13
Enclosure compatibility (NEMA type)1, 4, 4X, 12, 13
Hazardous location ratingfalse
Hole diameter30.5 mm
Humidity50 %
Illumination lamp typeIncandescent
Illumination module input voltage480V AC @ 50/60Hz
Illumination module termination tightening torque6 - 8 in-lb / 0.7 - 0.9 N-m
Illumination module termination wire range14 - 18 AWG (x2)
Illumination module typeTransformer
Operating temperature-25 °C
Operator cap/button materialPlastic
Operator cap/button shapeRound
Operator cap colorWhite
Operator cap typeFresnal
Operator construction/materialPlastic
Operator functionPush-to-test
Operator mechanical design life (cycles, min.)250000
Operator typePilot light, with lA test feature
Shock25 G (contact fragility)/100 G (no damage)
Storage temperature-40 °C
Suitable for illuminationtrue
Terminations with finger safe coversfalse
Type of electric connectionScrew connection
Vibration10 G maximum

800H-PRT46W: frequently asked questions

When can 800H-PRT46W be shipped?

800H-PRT46W is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 800H-PRT46W in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 800H-PRT46W and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 800H-PRT46W, subject to availability and destination.
