Allen-Bradley – 800H-FRXMP16RBC 30mm Push-Pull Device 800H PB
Discontinued by Rockwell Automation / Allen-Bradley — we can still source the original 800H-FRXMP16RBC (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | 800T/H Operators |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the 800H-FRXMP16RBC now that it is discontinued?
Yes. Rockwell Automation / Allen-Bradley has discontinued the 800H-FRXMP16RBC, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can 800H-FRXMP16RBC be shipped?
800H-FRXMP16RBC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 800H-FRXMP16RBC in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 800H-FRXMP16RBC and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 800H-FRXMP16RBC, subject to availability and destination.
Allen-Bradley 800H-FRXMP16RBC — 30mm Push-Pull Device 800H PB. Discontinued by Rockwell Automation on March 31, 2025. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Discontinued |
| Discontinued date | March 31, 2025 |
| Replacement category (Rockwell) | Functional Replacement |
| Repair options available | No |
Specifications
| Operator Type | Standard Mushroom Head |
| Type | 30mm Push-Pull Device |
| Contact block electrical design life (cycles, at max. load) | Custom configuration - consult factory |
| Contact block operational voltage, max | Custom configuration - consult factory |
| Contact block termination tightening torque | Custom configuration - consult factory |
| Contact block termination wire range | Custom configuration - consult factory |
| Contact block thermal current rating | Custom configuration - consult factory |
| Contact block utilization category (AC) | Custom configuration - consult factory |
| Contact block utilization category (DC) | Custom configuration - consult factory |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Hazardous location rating | Custom configuration - consult factory |
| Hole diameter | 30.5 mm |
| Humidity | 50 % |
| Illumination lamp type | Incandescent |
| Illumination module input voltage | 120V AC @ 50/60Hz |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Illumination module termination wire range | 15 - 18 AWG (x2) |
| Illumination module type | Transformer |
| Operating temperature | -25 °C |
| Operator cap/button material | Plastic |
| Operator cap/button shape | Round |
| Operator cap/button size | 40 mm |
| Operator cap color | Red |
| Operator cap type | Mushroom head |
| Operator construction/material | Plastic |
| Operator function | 3-position |
| Operator mechanical design life (cycles, min.) | 250000 |
| Operator special function | Momentary-out, maintained-center, maintained-in |
| Operator type | Push-pull unit |
| Position 1 contact block | 1 NCLB, 1 NO, standard contact block (800T-XA1) |
| Position 3 contact block | 1 NCLB, 1 NC, standard contact block (800T-XA7) |
| Position 4 contact block | Not applicable |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Storage temperature | -40 °C |
| Suitable for illumination | true |
| Terminations with finger safe covers | false |
| Type of electric connection | Screw connection |
| Vibration | Custom configuration - consult factory |
More Rockwell Automation / Allen-Bradley parts
Available on request800H-FRXM5A7 30mm Push-Pull Device 800H PB
Available on request800H-FRXM7A 30mm Push-Pull Device 800H PB
Available on requestRockwell Automation / Allen-Bradley 800H-FRXMP16AA7 – 30mm Push-Pull Device 800H PB
Available on request800H-FRXMP16RA5 30mm Push-Pull Device 800H PB
Available on request800H-FRXMP16W 30mm Push-Pull Device 800H PB
Available on request800H-FRXMP16WA1 30mm Push-Pull Device 800H PB
Available on request800H-FRXMP16XA 30mm Push-Pull Device 800H PB

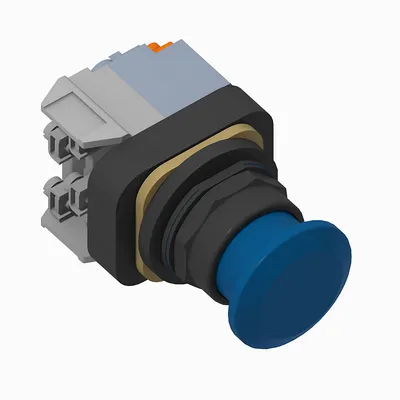

Available on request800H-FRXMP26BA7 30mm Push-Pull Device 800H PB
