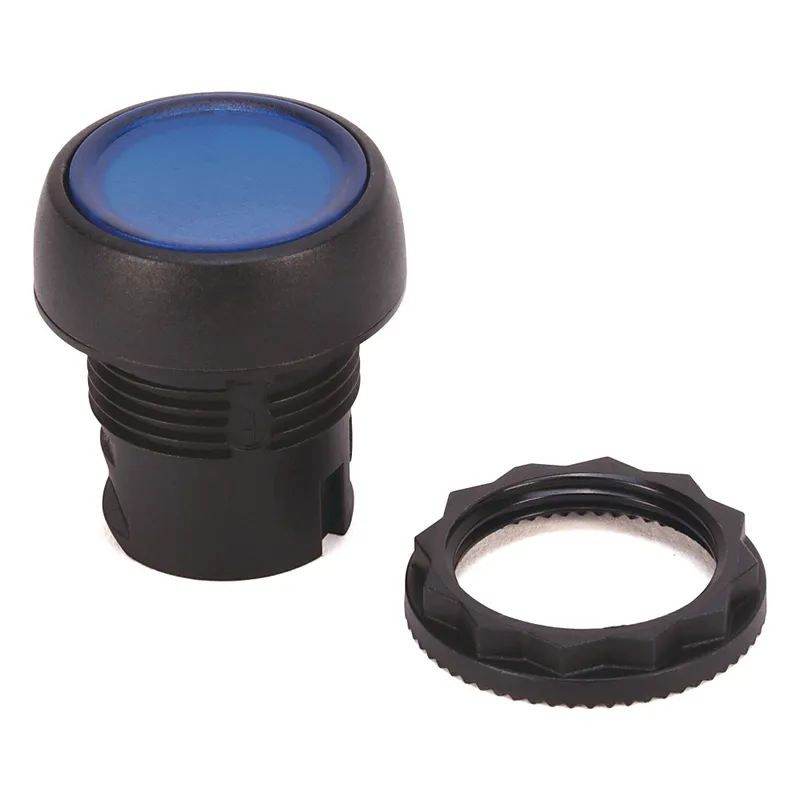

Allen-Bradley – 800FP-LF7PD4CX10 22mm Momentary Push Button 800F PB

MPN: 800FP-LF7PD4CX10 · Brand: Rockwell Automation / Allen-Bradley

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	800FC Pendant Stations
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 800FP-LF7PD4CX10 be shipped?

800FP-LF7PD4CX10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 800FP-LF7PD4CX10 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 800FP-LF7PD4CX10 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 800FP-LF7PD4CX10, subject to availability and destination.

Allen-Bradley 800FP-LF7PD4CX10 — 22mm Momentary Push Button 800F PB. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Active
Repair options available	No

Specifications

Contact block configuration	1 NO
Contact block durability	1.0E7
Contact block mounting style	Latch
Contact block operational voltage, max	600V (A600, Q600) - screw termination
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block termination wire range	#18...12 AWG (0.75...2.5 mm²)
Contact block thermal current rating	10 A
Contact block type	Standard
Contact block utilization category (AC)	A600, AC 15 - screw termination
Contact block utilization category (DC)	Q600, DC-13 - screw termination
Enclosure compatibility	IP69K, IP66, Type 4/4X/13 (Round plastic operator)
Hole diameter	22.5 mm
Humidity	≤95% RH from 25...60 °C (77...140 °F)
Illumination lamp type	Incandescent
Illumination module input voltage	48V AC/DC (incandescent)
Illumination module mounting style	Latch
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Illumination module termination wire range	#18...12 AWG (0.75...2.5 mm²)
Illumination module type	Incandescent module
Latch material	Plastic
Operating temperature	-25 °C
Operator cap/button material	Plastic
Operator cap/button shape	Round
Operator cap color (lens)	Clear
Operator cap text/symbol	Optional
Operator cap type	Illuminated flush
Operator construction/material	Plastic
Operator function	22 mm momentary push button
Operator mechanical design life (cycles, min.)	1.0E7
Operator type	Push button
Shock	100 G
Storage temperature	-40 °C
Suitable for illumination	true
Termination style	Screw contact block
Vibration	10 G
