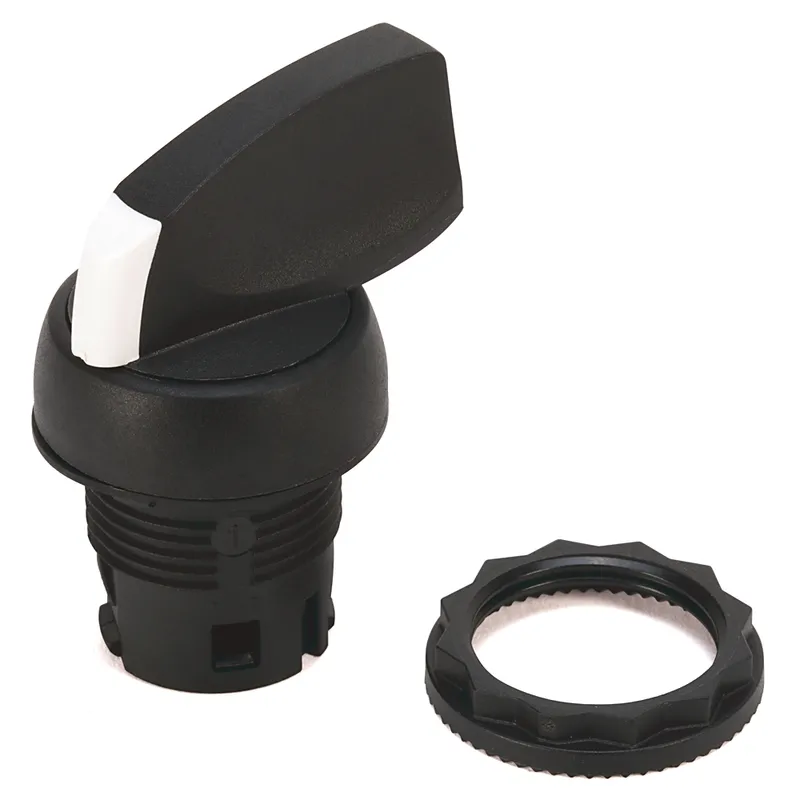

Allen-Bradley 800FP-HM22PQ11
22mm Selector Switch 800F PB
- MPN
- 800FP-HM22PQ11
- Category
- 800FC Pendant Stations
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →
What is the Allen-Bradley 800FP-HM22PQ11?
Allen-Bradley 800FP-HM22PQ11 — 22mm Selector Switch 800F PB. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Repair options available | No |
Specifications
| Contact block configuration | 1 NO/1 NC |
| Contact block durability | 1.0E7 |
| Contact block mounting style | Latch |
| Contact block operational voltage, max | 300V (A300, Q300) - Spring ClA Termination |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block termination wire range | #18...14 AWG (0.75...1.5 mm²) |
| Contact block thermal current rating | 10 A |
| Contact block type | Standard |
| Contact block utilization category (AC) | A300, AC 15 - Spring ClA Termination |
| Contact block utilization category (DC) | Q300, DC-13 - Spring ClA Termination |
| Enclosure compatibility | IP66, Type 4/4X/13 (Round plastic operator) |
| Hazardous location rating | false |
| Hole diameter | 22.5 mm |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Latch material | Plastic |
| Material front ring | Plastic |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Number of switch positions | 2 |
| Operating temperature | -25 °C |
| Operator cap/button material | Plastic |
| Operator cap color | Black |
| Operator construction/material | Plastic |
| Operator function | Maintained, 2 position |
| Operator mechanical design life (cycles, min.) | 1000000 |
| Operator type | Knob lever selector switch |
| Packaging | Standard pack (1 per package) |
| Shock | 100 G |
| Spring-return | false |
| Storage temperature | -40 °C |
| Suitable for illumination | false |
| Switching function latching | true |
| Switch orientation | Standard |
| Termination style | Spring clA |
| Type of control element | Short thumb-grip |
| Type of electric connection | Spring clA connection |
| Vibration | 10 G |
| With light source | false |
No matching specifications
800FP-HM22PQ11: frequently asked questions
When can 800FP-HM22PQ11 be shipped?
800FP-HM22PQ11 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 800FP-HM22PQ11 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 800FP-HM22PQ11 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 800FP-HM22PQ11, subject to availability and destination.
