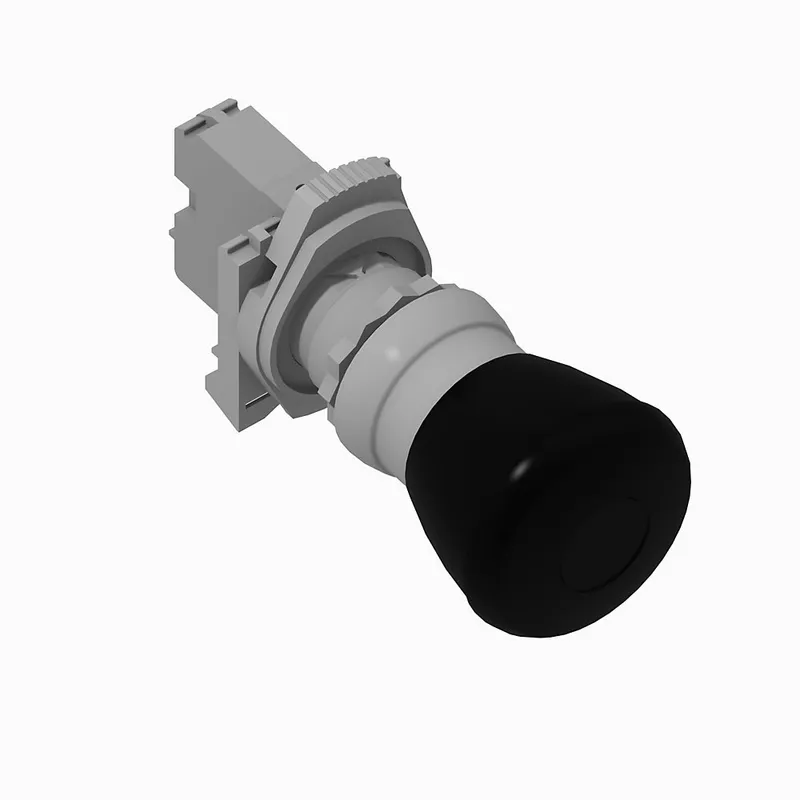

Allen-Bradley – 800FM-MP42MX10V 22mm Push Pull Operator 800F PB

MPN: 800FM-MP42MX10V · Brand: Rockwell Automation / Allen-Bradley

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	800F 22 mm Round Operators
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 800FM-MP42MX10V be shipped?

800FM-MP42MX10V is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 800FM-MP42MX10V in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 800FM-MP42MX10V and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 800FM-MP42MX10V, subject to availability and destination.

Allen-Bradley 800FM-MP42MX10V — 22mm Push Pull Operator 800F PB. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Active
Repair options available	No

Specifications

Type	22mm Push Pull Operator
Connection type auxiliary circuit	Screw connection
Contact block configuration	1 NO
Contact block durability	10000000 cycles
Contact block mounting style	Latch
Contact block operational voltage, max	600V (A600, Q600) - screw termination
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block termination wire range	#18...12 AWG (0.75...2.5 mm²)
Contact block thermal current rating	10 A
Contact block type	Low voltage
Contact block utilization category (AC)	C300, AC 15 - low voltage contact block
Contact block utilization category (DC)	R150, DC 13 - low voltage contact block
Diameter cap	40 mm
Enclosure compatibility	IP66, Type 4/13 (round metal operator)
Hole diameter	22.5 mm
Humidity	≤95% RH from 25...60 °C (77...140 °F)
Illumination lamp type	No power module
Illumination module input voltage	No power module
Illumination module type	No power module
Latch material	Metal
Mounting method	Surface mounting
Number of contacts as normally open contact	1
Operating temperature	-25 °C
Operator cap/button material	Metal
Operator cap/button size	40 mm push-pull
Operator cap color	Black
Operator cap type	Mushroom head
Operator construction/material	Metal
Operator function	22 mm push pull operator
Operator mechanical design life (cycles, min.)	300000
Operator type	40 mm push-pull
Shock	100 G
Storage temperature	-40 °C
Termination style	Screw contact block
Unlocking method	Pull-release
Vibration	10 G
With lighting	false
