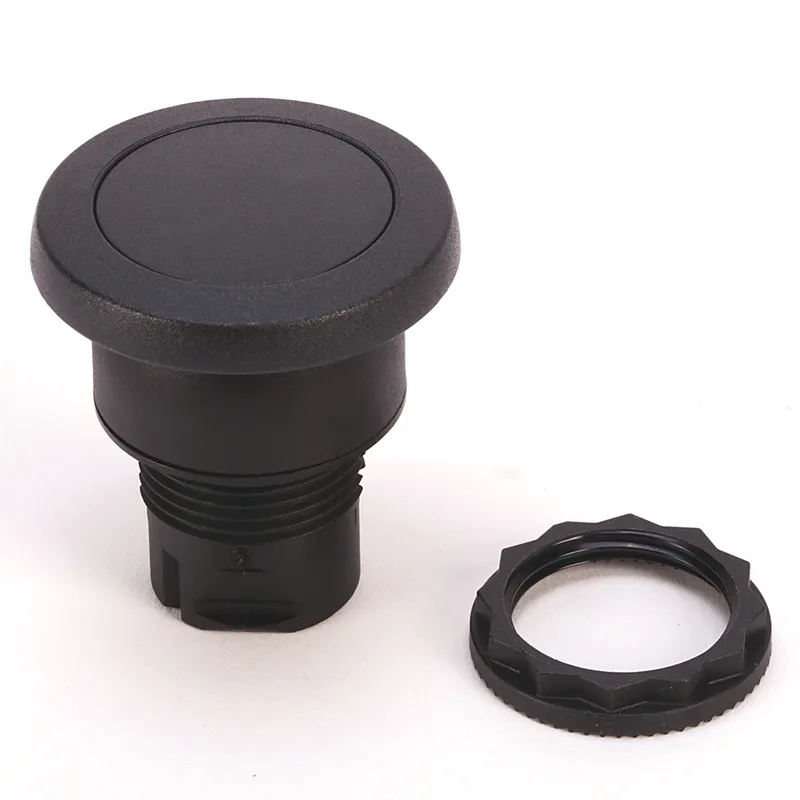

Allen-Bradley – 800FM-MM42MQ10 22mm Momentary Push Button 800F PB

Name: Allen-Bradley – 800FM-MM42MQ10 22mm Momentary Push Button 800F PB
Brand: Rockwell Automation / Allen-Bradley
SKU: 800FM-MM42MQ10

MPN: 800FM-MM42MQ10 · Brand: Rockwell Automation / Allen-Bradley

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	800F 22 mm Round Operators
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 800FM-MM42MQ10 be shipped?

800FM-MM42MQ10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 800FM-MM42MQ10 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 800FM-MM42MQ10 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 800FM-MM42MQ10, subject to availability and destination.

Allen-Bradley 800FM-MM42MQ10 — 22mm Momentary Push Button 800F PB. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Active
Repair options available	No

Specifications

Type	22mm Momentary Push Button
Contact block configuration	1 NO
Contact block durability	1.0E7
Contact block mounting style	Latch
Contact block operational voltage, max	300V (A300, Q300) - spring clA termination
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block termination wire range	#18...14 AWG (0.75...1.5 mm²)
Contact block thermal current rating	10 A
Contact block type	Standard
Contact block utilization category (AC)	A300, AC 15 - spring clA termination
Contact block utilization category (DC)	Q300, DC-13 - spring clA termination
Enclosure compatibility	IP65, Type 4/13 (Round metal operator)
Hole diameter	22.5 mm
Humidity	≤95% RH from 25...60 °C (77...140 °F)
Illumination lamp type	No power module
Illumination module input voltage	No power module
Illumination module type	No power module
Latch material	Metal
Number of contacts as normally open contact	1
Operating temperature	-25 °C
Operator cap color (lens)	Black
Operator cap type	Momentary mushroom, 40mm
Operator construction/material	Metal
Operator function	22 mm momentary push button
Operator mechanical design life (cycles, min.)	1.0E7
Operator type	Push button
Shock	100 G
Spring-return	true
Storage temperature	-40 °C
Suitable for illumination	false
Switching function latching	false
Termination style	Spring-clA contact block
Vibration	10 G
