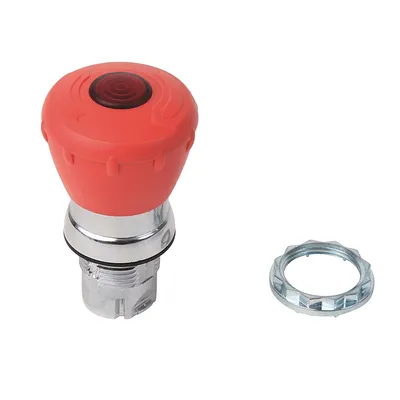

Allen-Bradley 800FM-LMT44MN5RX02S

22mm Twist To Release E-Stop 800F PB

MPN
800FM-LMT44MN5RX02S
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 800FM-LMT44MN5RX02S?

Allen-Bradley 800FM-LMT44MN5RX02S — 22mm Twist To Release E-Stop 800F PB. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Repair options availableNo

Specifications

Connection type auxiliary circuitScrew connection
Contact block configuration2 NC
Contact block durability10000000 cycles
Contact block mounting styleLatch
Contact block operational voltage, max600V (A600, Q600) - screw termination
Contact block termination tightening torque6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block termination wire range#18...12 AWG (0.75...2.5 mm²)
Contact block thermal current rating10 A
Contact block typeSelf monitoring
Contact block utilization category (AC)A600, AC 15 - screw termination
Contact block utilization category (DC)Q600, DC-13 - screw termination
Diameter cap40 mm
Enclosure compatibilityIP66, Type 4/13 (round metal operator)
Hole diameter22.5 mm
Humidity≤95% RH from 25...60 °C (77...140 °F)
Illumination lamp typeRed LED
Illumination module input voltage120V AC/DC (incandescent), 120V AC (LED)
Illumination module mounting styleLatch
Illumination module termination tightening torque6 - 8 in-lb / 0.7 - 0.9 N-m
Illumination module termination wire range#18...12 AWG (0.75...2.5 mm²)
Illumination module typeIntegrated LED module
Latch materialMetal
Mounting methodSurface mounting
Number of contacts as normally closed contact2
Operating temperature-25 °C
Operator cap/button materialMetal
Operator cap/button size40 mm twist to release lit
Operator cap colorRed
Operator cap typeMushroom head
Operator construction/materialMetal
Operator function22 mm twist to release E-stop
Operator mechanical design life (cycles, min.)300000
Operator type40 mm twist to release lit
Shock100 G
Storage temperature-40 °C
Termination styleScrew contact block
Unlocking methodTurn-release
Vibration10 G
With lightingtrue

800FM-LMT44MN5RX02S: frequently asked questions

When can 800FM-LMT44MN5RX02S be shipped?

800FM-LMT44MN5RX02S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 800FM-LMT44MN5RX02S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 800FM-LMT44MN5RX02S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 800FM-LMT44MN5RX02S, subject to availability and destination.
