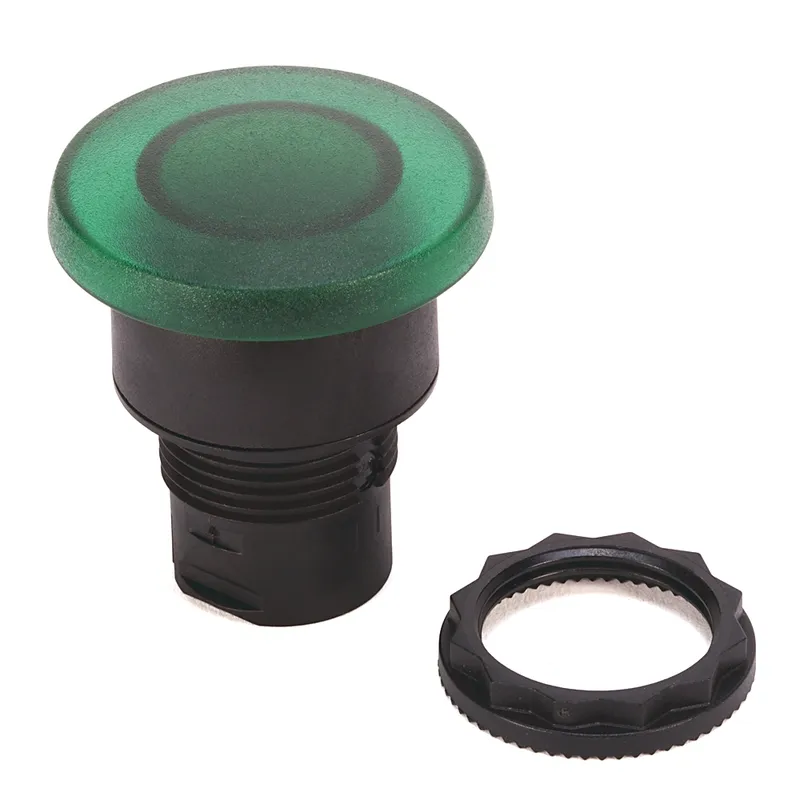

Allen-Bradley 800FM-LMM44PN5RX11

22mm Momentary Push Button 800F PB

MPN
800FM-LMM44PN5RX11
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 800FM-LMM44PN5RX11?

Allen-Bradley 800FM-LMM44PN5RX11 — 22mm Momentary Push Button 800F PB. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Repair options availableNo

Specifications

Contact block configuration1 NO/1 NC
Contact block durability1.0E7
Contact block mounting styleLatch
Contact block operational voltage, max600V (A600, Q600) - screw termination
Contact block termination tightening torque6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block termination wire range#18...12 AWG (0.75...2.5 mm²)
Contact block thermal current rating10 A
Contact block typeStandard
Contact block utilization category (AC)A600, AC 15 - screw termination
Contact block utilization category (DC)Q600, DC-13 - screw termination
Enclosure compatibilityIP65, Type 4/13 (Round metal operator)
Hole diameter22.5 mm
Humidity≤95% RH from 25...60 °C (77...140 °F)
Illumination lamp typeRed LED
Illumination module input voltage120V AC/DC (incandescent), 120V AC (LED)
Illumination module mounting styleLatch
Illumination module termination tightening torque6 - 8 in-lb / 0.7 - 0.9 N-m
Illumination module termination wire range#18...12 AWG (0.75...2.5 mm²)
Illumination module typeIntegrated LED module
Latch materialPlastic
Number of contacts as normally closed contact1
Number of contacts as normally open contact1
Operating temperature-25 °C
Operator cap color (lens)Red
Operator cap typeIlluminated, momentary mushroom, 40mm
Operator construction/materialMetal
Operator function22 mm momentary push button
Operator mechanical design life (cycles, min.)1.0E7
Operator typePush button
Shock100 G
Spring-returntrue
Storage temperature-40 °C
Suitable for illuminationtrue
Supply voltage lamp120 V
Switching function latchingfalse
Termination styleScrew contact block
Vibration10 G
