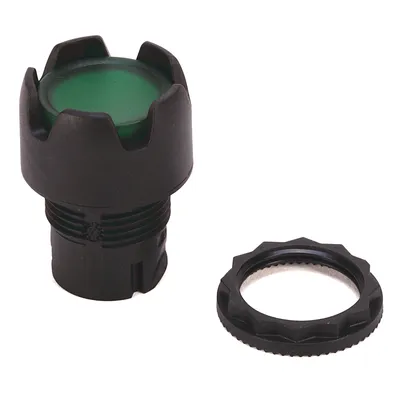

Allen-Bradley – 800FM-LG5MD5CX10 22mm Momentary Push Button 800F PB

MPN: 800FM-LG5MD5CX10 · Brand: Rockwell Automation / Allen-Bradley

Price on request

Discontinued by Rockwell Automation / Allen-Bradley — we can still source the original 800FM-LG5MD5CX10 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	800F 22 mm Round Operators
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the 800FM-LG5MD5CX10 now that it is discontinued?

Yes. Rockwell Automation / Allen-Bradley has discontinued the 800FM-LG5MD5CX10, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 800FM-LG5MD5CX10 be shipped?

800FM-LG5MD5CX10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 800FM-LG5MD5CX10 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 800FM-LG5MD5CX10 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 800FM-LG5MD5CX10, subject to availability and destination.

Allen-Bradley 800FM-LG5MD5CX10 — 22mm Momentary Push Button 800F PB. Discontinued by Rockwell Automation on June 30, 2025. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Discontinued
Discontinued date	June 30, 2025
Replacement category (Rockwell)	Direct Replacement
Repair options available	No

Specifications

Indicator	Yellow
Type	22mm Momentary Push Button
Contact block configuration	1 NO
Contact block durability	1.0E7
Contact block mounting style	Latch
Contact block operational voltage, max	600V (A600, Q600) - screw termination
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block termination wire range	#18...12 AWG (0.75...2.5 mm²)
Contact block thermal current rating	10 A
Contact block type	Standard
Contact block utilization category (AC)	A600, AC 15 - screw termination
Contact block utilization category (DC)	Q600, DC-13 - screw termination
Enclosure compatibility	IP66, Type 4/13 (Round metal operator)
Hole diameter	22.5 mm
Humidity	≤95% RH from 25...60 °C (77...140 °F)
Illumination lamp type	Incandescent
Illumination module input voltage	120V AC/DC (incandescent)
Illumination module mounting style	Latch
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Illumination module termination wire range	#18...12 AWG (0.75...2.5 mm²)
Illumination module type	Incandescent module
Latch material	Metal
Operating temperature	-25 °C
Operator cap/button material	Plastic
Operator cap/button shape	Round
Operator cap color (lens)	Yellow
Operator cap text/symbol	Optional
Operator cap type	Illuminated guarded
Operator construction/material	Metal
Operator function	22 mm momentary push button
Operator mechanical design life (cycles, min.)	1.0E7
Operator type	Push button
Shock	100 G
Storage temperature	-40 °C
Suitable for illumination	true
Termination style	Screw contact block
Vibration	10 G
