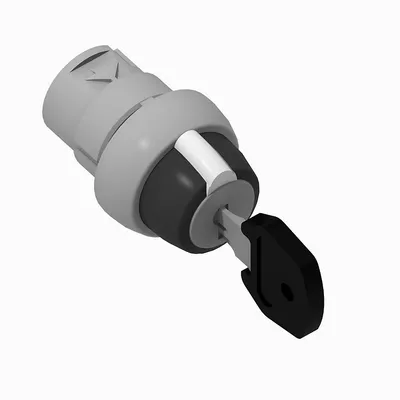

Allen-Bradley – 800FM-KR3427R 22mm Selector Switch 800F PB

MPN: 800FM-KR3427R · Brand: Rockwell Automation / Allen-Bradley

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	800F 22 mm Round Operators
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 800FM-KR3427R be shipped?

800FM-KR3427R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 800FM-KR3427R in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 800FM-KR3427R and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 800FM-KR3427R, subject to availability and destination.

Allen-Bradley 800FM-KR3427R — 22mm Selector Switch 800F PB. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Active
Repair options available	No

Specifications

Type	22mm Selector Switch
Contact block thermal current rating	10 A
Enclosure compatibility	IP66, Type 4/13 (round metal operator)
Hole diameter	22.5 mm
Humidity	≤95% RH from 25...60 °C (77...140 °F)
Key lock	4001
Key removal position	Center
Latch material	Metal
Material front ring	Metal
Number of switch positions	3
Operating temperature	-25 °C
Operator cap/button material	Plastic
Operator construction/material	Metal
Operator function	Spring return from right, 3 position
Operator mechanical design life (cycles, min.)	1000000
Operator type	Keyed selector switch
Shock	100 G
Spring-return	true
Storage temperature	-40 °C
Suitable for illumination	false
Switching function latching	false
Type of control element	Key
Vibration	10 G
With front ring	true
