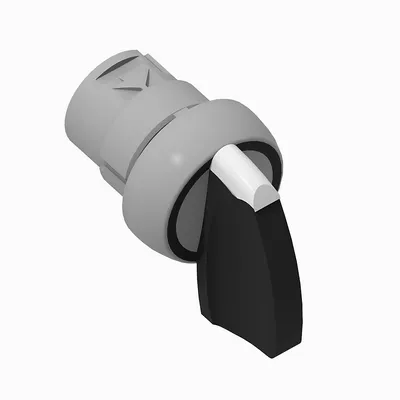

Allen-Bradley – 800FM-HM32MX40 22mm Selector Switch 800F PB

MPN: 800FM-HM32MX40 · Brand: Rockwell Automation / Allen-Bradley

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	800F 22 mm Round Operators
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 800FM-HM32MX40 be shipped?

800FM-HM32MX40 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 800FM-HM32MX40 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 800FM-HM32MX40 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 800FM-HM32MX40, subject to availability and destination.

Allen-Bradley 800FM-HM32MX40 — 22mm Selector Switch 800F PB. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Active
Repair options available	No

Specifications

Contact block configuration	4 NO
Contact block durability	1.0E7
Contact block mounting style	Latch
Contact block operational voltage, max	600V (A600, Q600) - Screw Termination
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block termination wire range	#18...12 AWG (0.75...2.5 mm²)
Contact block thermal current rating	10 A
Contact block type	Standard
Contact block utilization category (AC)	A600, AC 15 - Screw Termination
Contact block utilization category (DC)	Q600, DC-13 - Screw Termination
Enclosure compatibility	IP66, Type 4/13 (Round metal operator)
Hazardous location rating	false
Hole diameter	22.5 mm
Humidity	≤95% RH from 25...60 °C (77...140 °F)
Latch material	Metal
Material front ring	Metal
Number of contacts as normally open contact	4
Number of switch positions	3
Operating temperature	-25 °C
Operator cap/button material	Metal
Operator cap color	Black
Operator construction/material	Metal
Operator function	Maintained, 3 position
Operator mechanical design life (cycles, min.)	1000000
Operator type	Knob lever selector switch
Packaging	Standard pack (1 per package)
Shock	100 G
Spring-return	false
Storage temperature	-40 °C
Suitable for illumination	false
Switching function latching	true
Switch orientation	Standard
Termination style	Screw
Type of control element	Short thumb-grip
Type of electric connection	Screw connection
Vibration	10 G
With light source	false
